CLKOUT0
(Divide-by-1)
1
2
4
4
3
TMS320DM6467T
www.ti.com
SPRS605C –JULY 2009–REVISED JUNE 2012
Table 7-14. Switching Characteristics Over Recommended Operating Conditions for CLKOUT0
(1) (2)
(see Figure 7-17)
-1G
NO. PARAMETER UNIT
MIN MAX
1 t
c(CLKOUT0)
Cycle time, CLKOUT0 6.734 296.296 ns
2 t
w(CLKOUT0H)
Pulse duration, CLKOUT0 high 0.4P 0.6P ns
3 t
w(CLKOUT0L)
Pulse duration, CLKOUT0 low 0.4P 0.6P ns
4 t
t(CLKOUT0)
Transition time, CLKOUT0 0.05P ns
(1) The reference points for the rise and fall transitions are measured at V
OL
MAX and V
OH
MIN.
(2) P = 1/CLKOUT0 clock frequency in nanoseconds (ns). For example, when CLKOUT0 frequency is 33.3 MHz, use P = 30.03 ns.

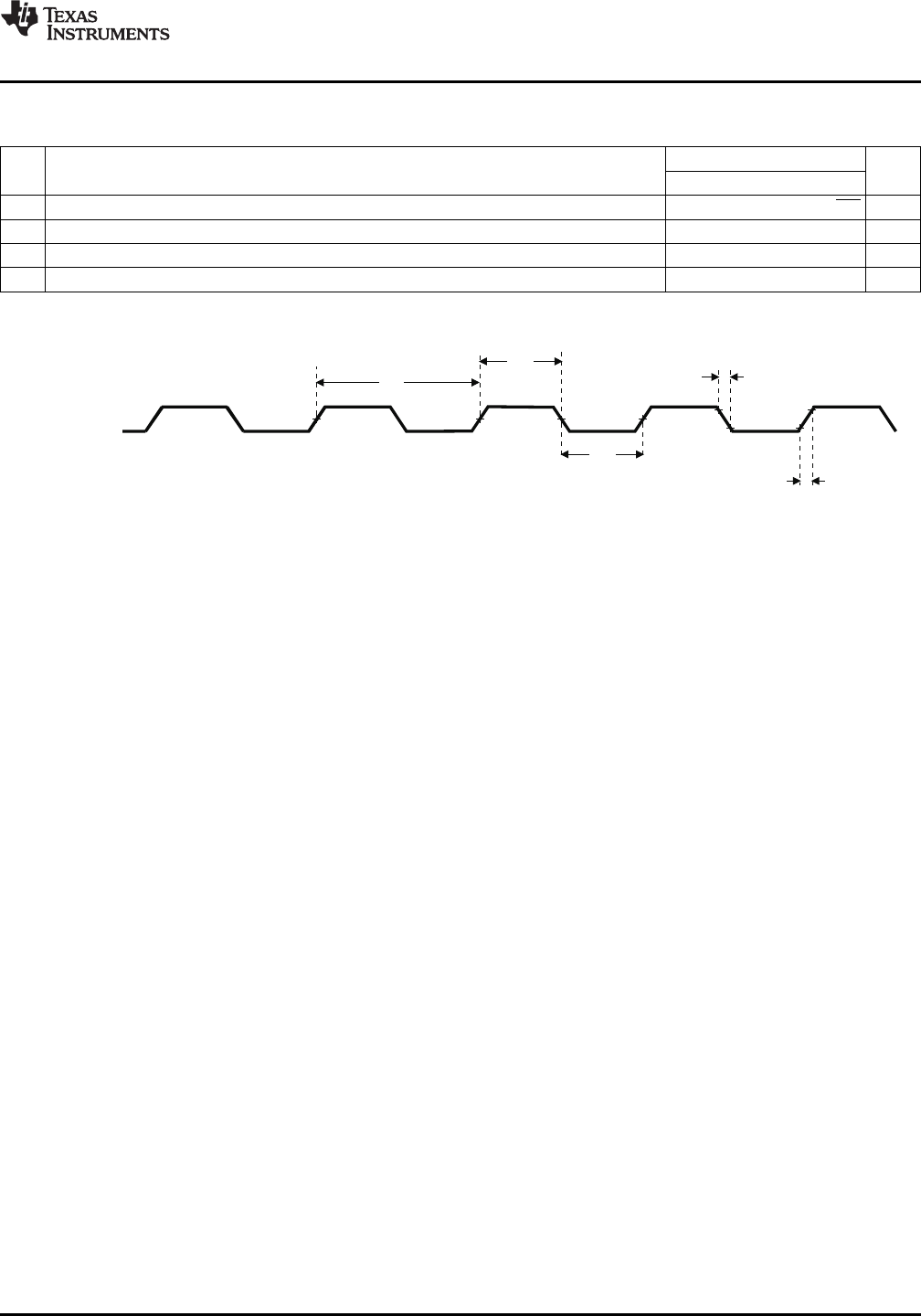

Figure 7-17. CLKOUT0 Timing
Copyright © 2009–2012, Texas Instruments Incorporated Peripheral Information and Electrical Specifications 161
Submit Documentation Feedback
Product Folder Link(s): TMS320DM6467T
