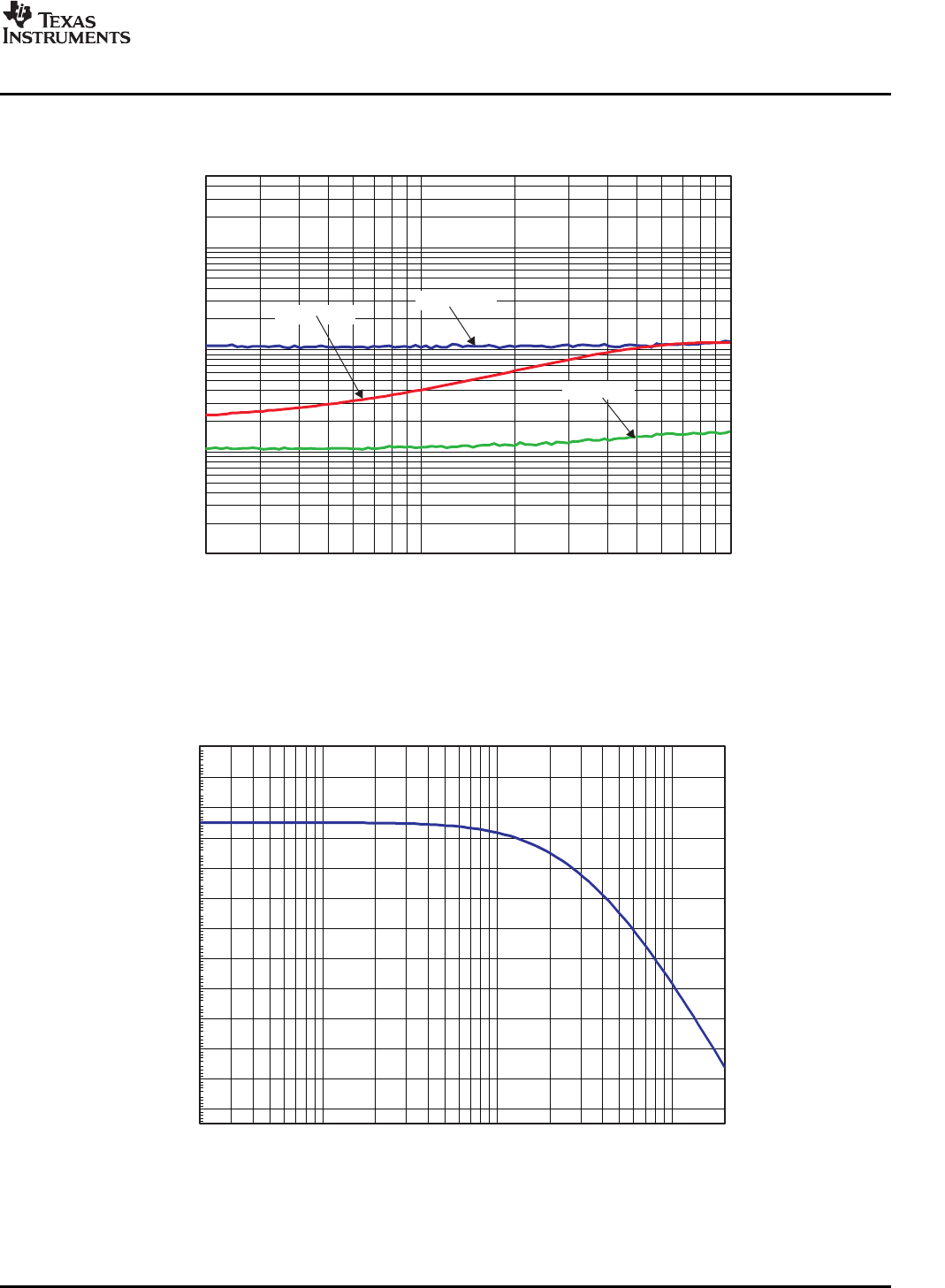

4.24 Subwoofer Lineout THD+N vs Frequency
0.001
5
0.002
0.005
0.01
0.02
0.05
0.1
0.2
0.5
1
2
20 1k50
100
200
500
f-Frequency-Hz
THD+N-TotalHarmonicDistortion+Noise-%
0.01VRMS
0.1VRMS
1.98VRMS
4.25 Subwoofer Lineout Frequency Response
10
-38
-34
-30
-26
-22
-18
-14
-10
-6
-2
-0
2
6
20 20k50 100 200 500 1k 2k 5k 10k
f-Frequency-Hz
dB
TAS5352DDV6EVM Performance
Load is 10 k Ω .
Figure 27. Subwoofer Lineout THD+N vs Frequency
Measurement bandwidth filter is 80 kHz. Load is 10 k Ω .
Figure 28. Subwoofer Lineout Frequency Response
