4.18 High-Current Protection (BTL)
-20
20
-17.5
-15
-10
-7.5
-5
-2.5
0
2.5
5
7.5
10
15
17.5
12.22
0 3m500u 1m 2.5m
t-Time-s
-12.47
dy=24.69V
dx=505.9 sm
1.365m 1.871m
PeakCurrent- A
4.19 High-Current Protection (PBTL)
-30
30
-25
-20
-15
-10
-5
0
5
10
15
20
25.66
-26.25
0 3m500u 1m 2.5m
1.365m
1.859m
t-Time-s
dx=494.1us dy=-51.90V
PeakCurrent- A
TAS5352DDV6EVM Performance
Input is 1-kHz bursted signal; load is 1 Ω .

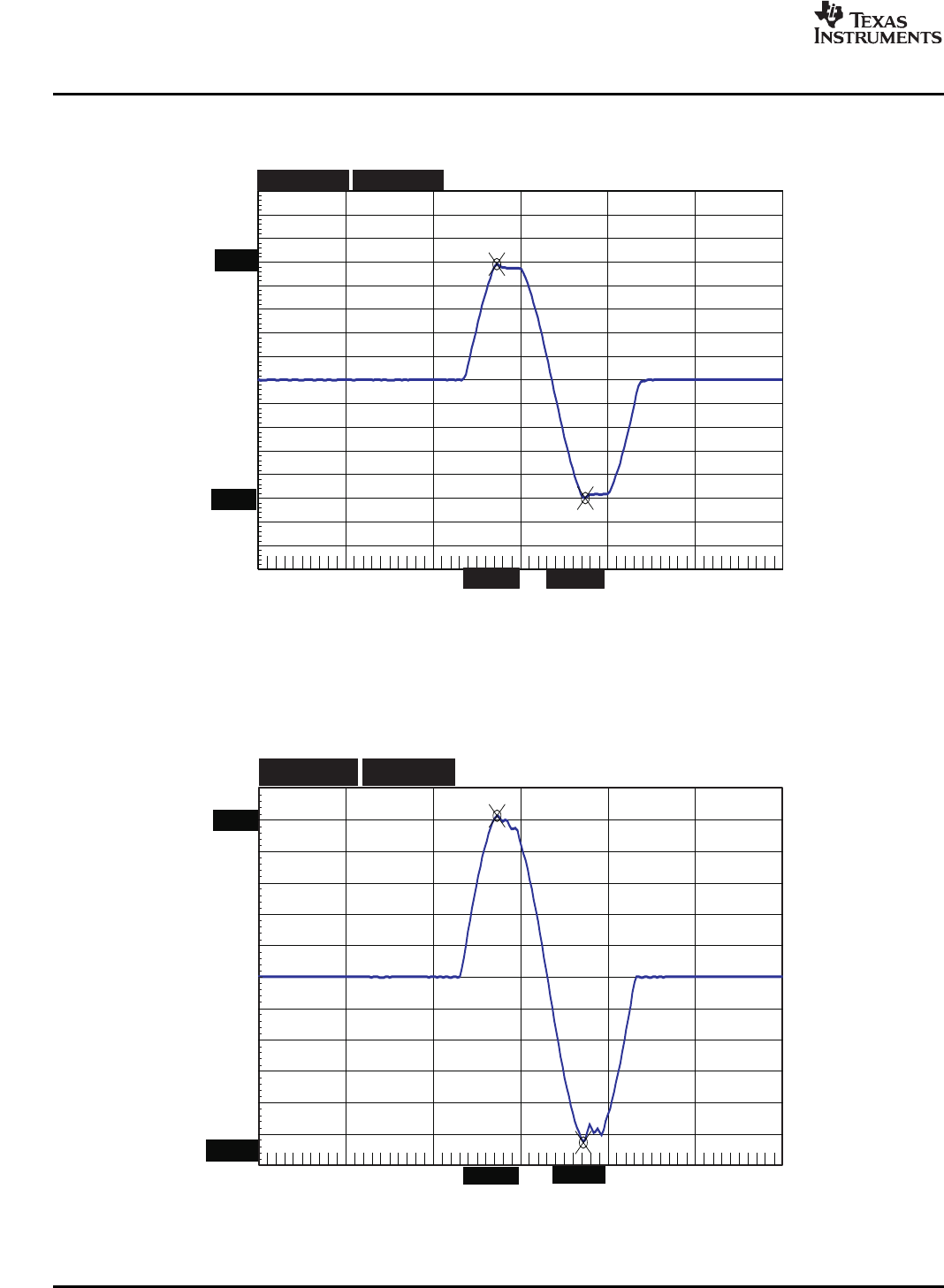

Figure 21. High-Current Protection (BTL)
Input is 1-kHz bursted signal; load is 1 Ω .
Figure 22. High-Current Protection (PBTL)
