LMC6482
SNOS674D –NOVEMBER 1997–REVISED MARCH 2013
www.ti.com

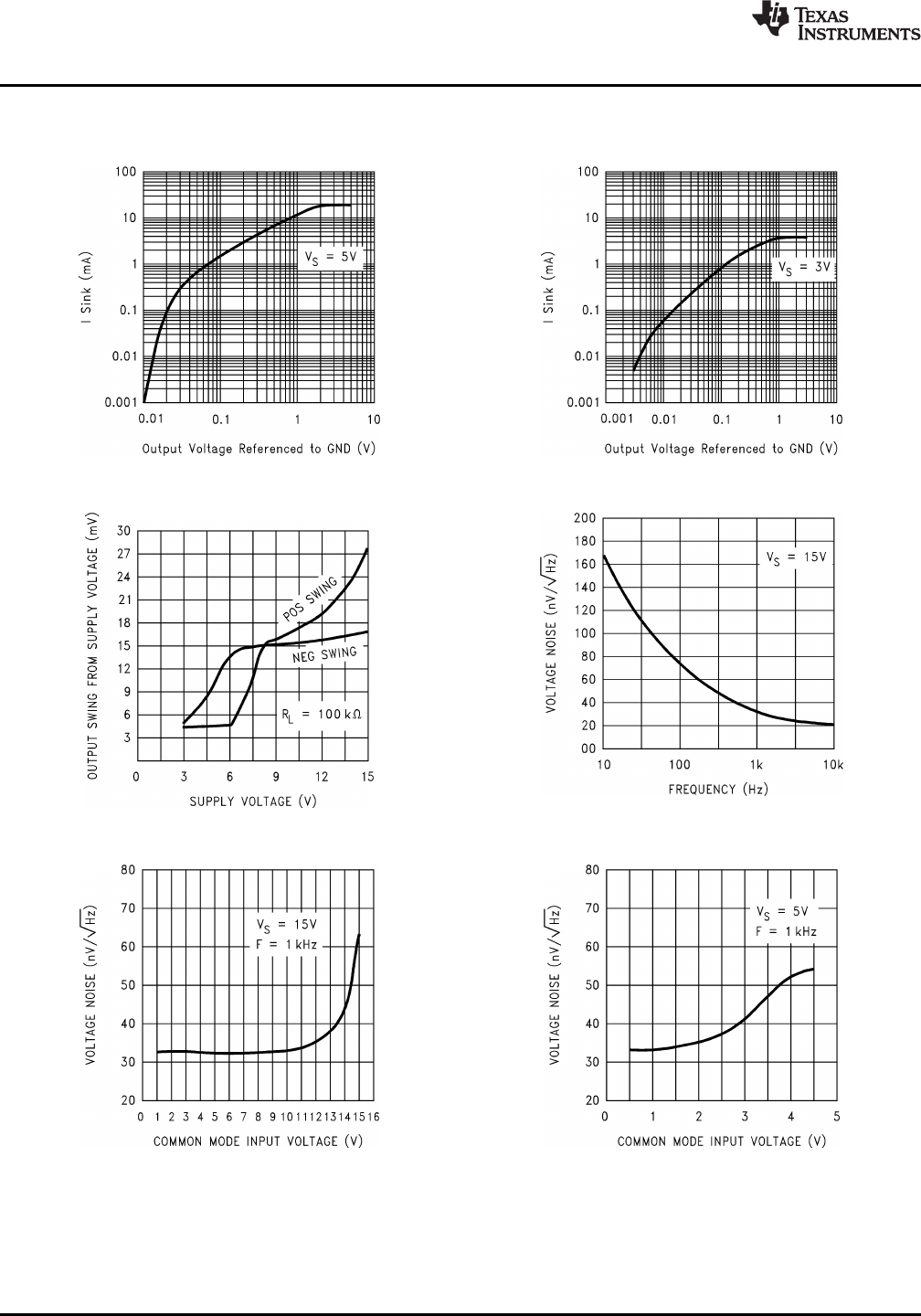

Typical Performance Characteristics (continued)
V
S
= +15V, Single Supply, T
A
= 25°C unless otherwise specified
Sinking Current vs. Output Voltage Sinking Current vs. Output Voltage
Figure 10. Figure 11.
Output Voltage Swing vs. Supply Voltage Input Voltage Noise vs. Frequency
Figure 12. Figure 13.
Input Voltage Noise vs. Input Voltage Input Voltage Noise vs. Input Voltage
Figure 14. Figure 15.
8 Submit Documentation Feedback Copyright © 1997–2013, Texas Instruments Incorporated
Product Folder Links: LMC6482
