LMC6482
www.ti.com
SNOS674D –NOVEMBER 1997–REVISED MARCH 2013
Typical Performance Characteristics
V
S
= +15V, Single Supply, T
A
= 25°C unless otherwise specified

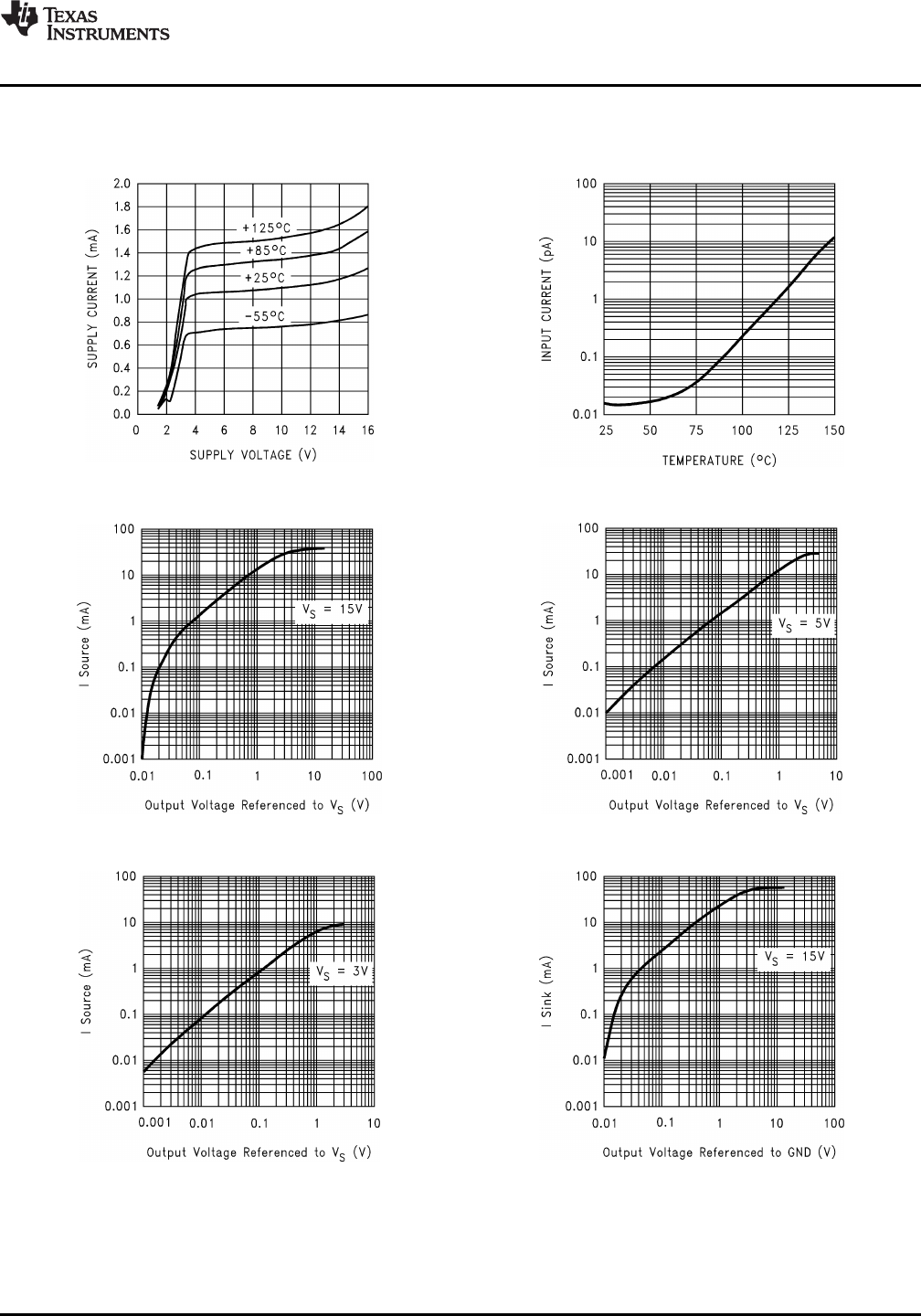

Supply Current vs. Supply Voltage Input Current vs. Temperature
Figure 4. Figure 5.
Sourcing Current vs. Output Voltage Sourcing Current vs. Output Voltage
Figure 6. Figure 7.
Sourcing Current vs. Output Voltage Sinking Current vs. Output Voltage
Figure 8. Figure 9.
