LMC6482
SNOS674D –NOVEMBER 1997–REVISED MARCH 2013
www.ti.com

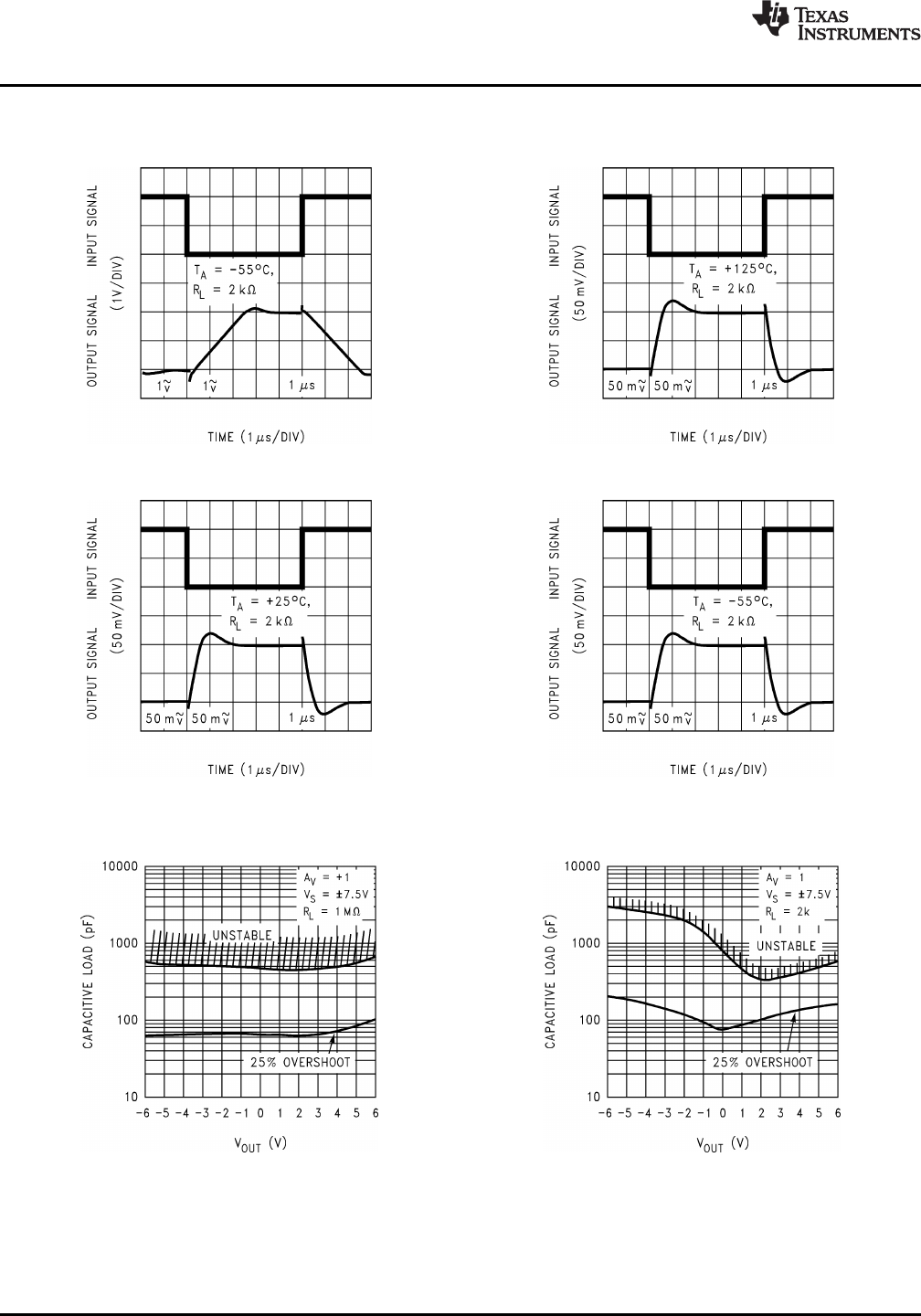

Typical Performance Characteristics (continued)
V
S
= +15V, Single Supply, T
A
= 25°C unless otherwise specified
Inverting Large Signal Pulse Response Inverting Small Signal Pulse Response
Figure 46. Figure 47.
Inverting Small Signal Pulse Response Inverting Small Signal Pulse Response
Figure 48. Figure 49.
Stability Stability
vs. vs.
Capacitive Load Capacitive Load
Figure 50. Figure 51.
14 Submit Documentation Feedback Copyright © 1997–2013, Texas Instruments Incorporated
Product Folder Links: LMC6482
