LMC6482
SNOS674D –NOVEMBER 1997–REVISED MARCH 2013
www.ti.com

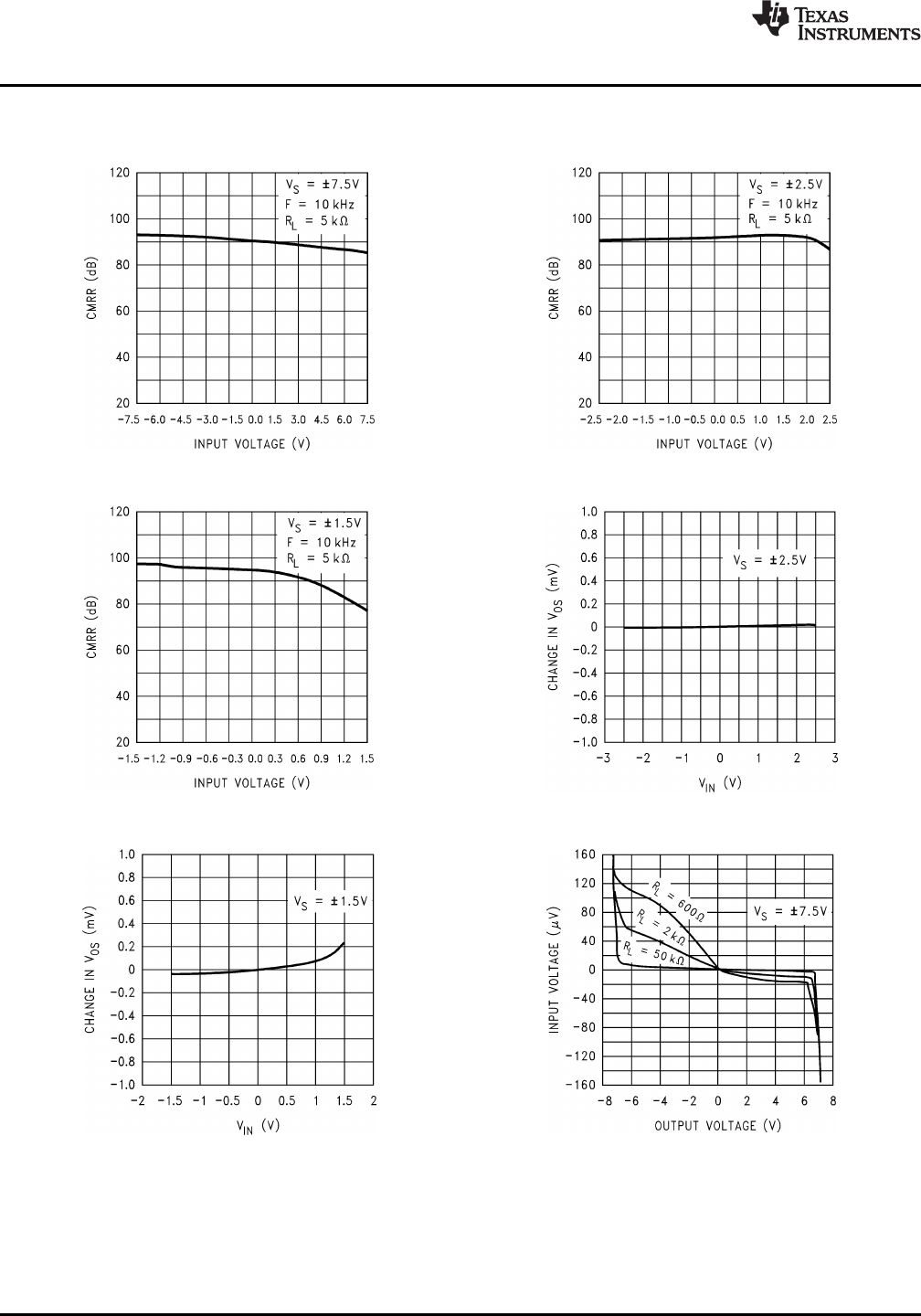

Typical Performance Characteristics (continued)
V
S
= +15V, Single Supply, T
A
= 25°C unless otherwise specified
CMRR vs. Input Voltage CMRR vs. Input Voltage
Figure 22. Figure 23.
CMRR vs. Input Voltage ΔV
OS
vs. CMR
Figure 24. Figure 25.
ΔV
OS
vs. CMR Input Voltage vs. Output Voltage
Figure 26. Figure 27.
10 Submit Documentation Feedback Copyright © 1997–2013, Texas Instruments Incorporated
Product Folder Links: LMC6482
