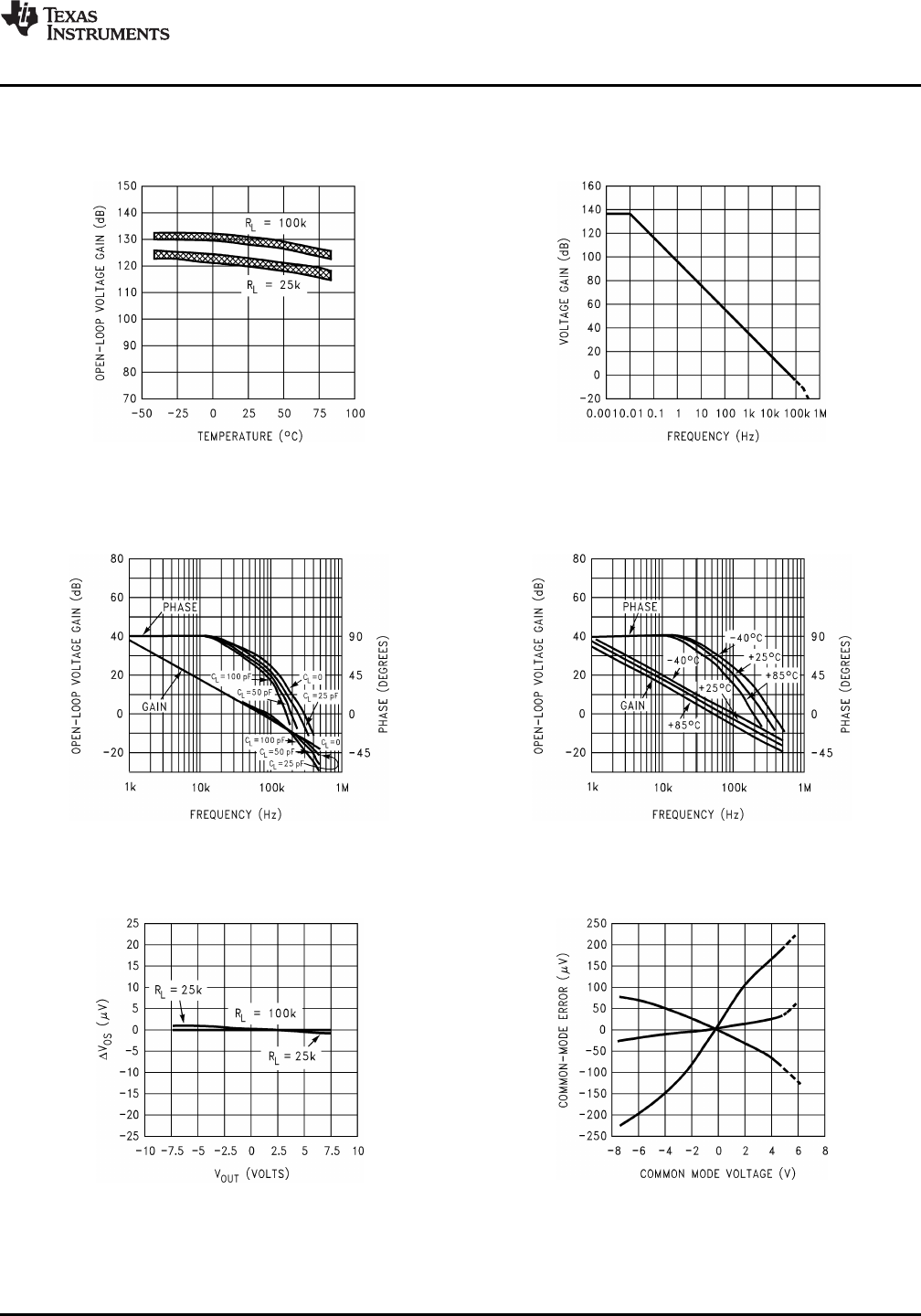

Typical Performance Characteristics (continued)
V
S
= ±7.5V, T
A
= 25°C unless otherwise specified
Open-Loop Voltage Gain Open-Loop
vs Temperature Frequency Response
Figure 13. Figure 14.
Gain and Phase
Responses
vs Gain and Phase
Load Responses vs
Capacitance Temperature
Figure 15. Figure 16.
Gain Error
(V
OS
Common-Mode Error vs
vs Common-Mode Voltage of
V
OUT
) Three Representative Units
Figure 17. Figure 18.
