LMC6044
www.ti.com
SNOS612D –NOVEMBER 1994–REVISED MARCH 2013
(V+ = 5.0 V
DC
)

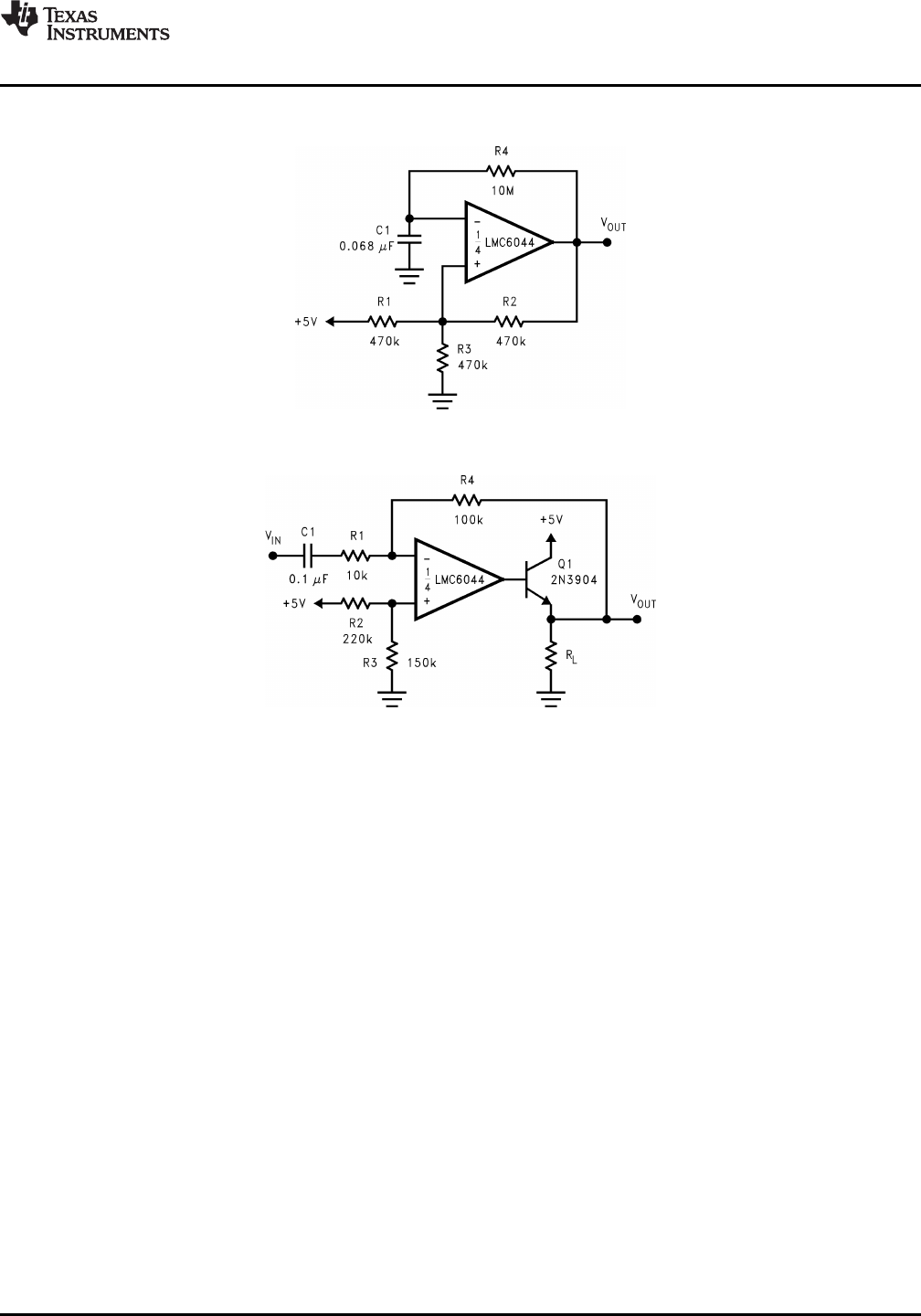

Figure 39. 1 Hz Square-Wave Oscillator
Figure 40. AC Coupled Power Amplifier
Copyright © 1994–2013, Texas Instruments Incorporated Submit Documentation Feedback 15
Product Folder Links: LMC6044
