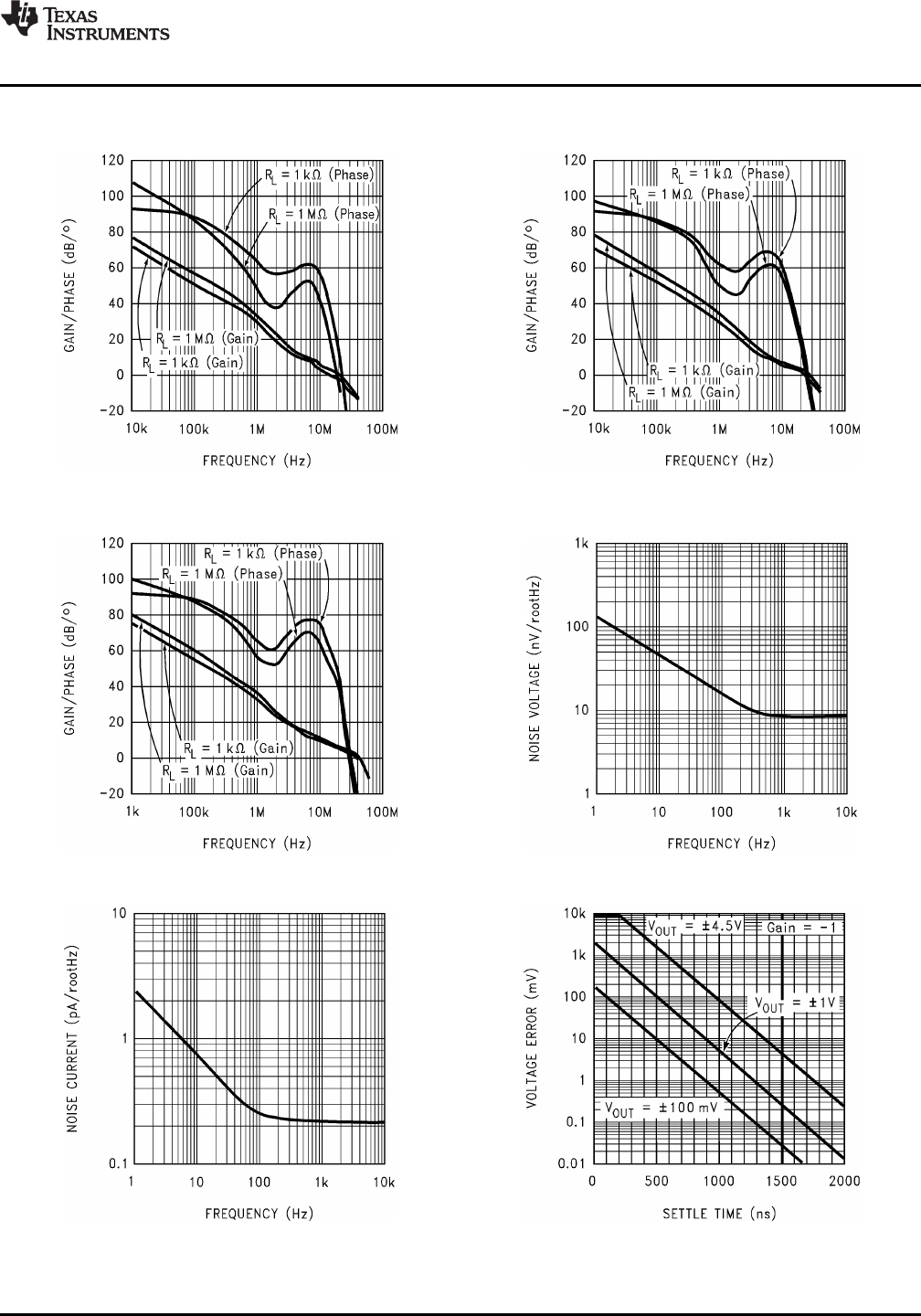

Typical Performance Characteristics (continued)
Open Loop Gain/Phase Open Loop Gain/Phase
(V
S
= 5V) (V
S
= 10V)
Figure 21. Figure 22.
Open Loop Gain/Phase
(V
S
= 24V) Noise Voltage vs. Frequency
Figure 23. Figure 24.
Noise Current vs. Frequency Voltage Error vs. Settle Time
Figure 25. Figure 26.
