Typical Performance Characteristics (continued)

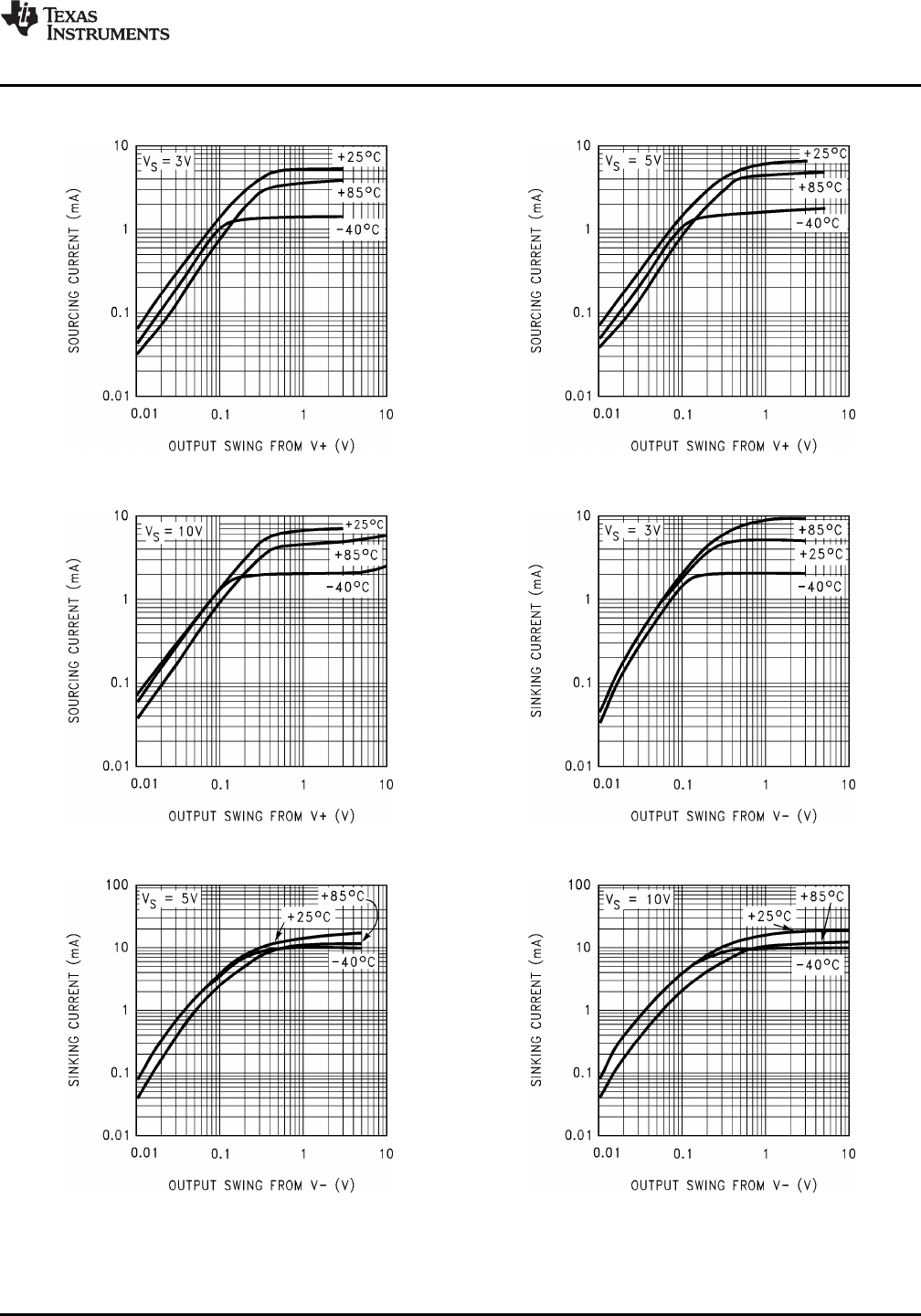

Output Voltage vs. Source Current Output Voltage vs. Source Current
Figure 9. Figure 10.
Output Voltage vs. Source Current Output Voltage vs. Sink Current
Figure 11. Figure 12.
Output Voltage vs. Sink Current Output Voltage vs. Sink Current
Figure 13. Figure 14.
