PC Board Layout www.ti.com
Trace 4 = Inductor Current
Trace 1 = V
OUT
Trace 2 = SW Node
V
IN
= 48 V, I
OUT
= 0

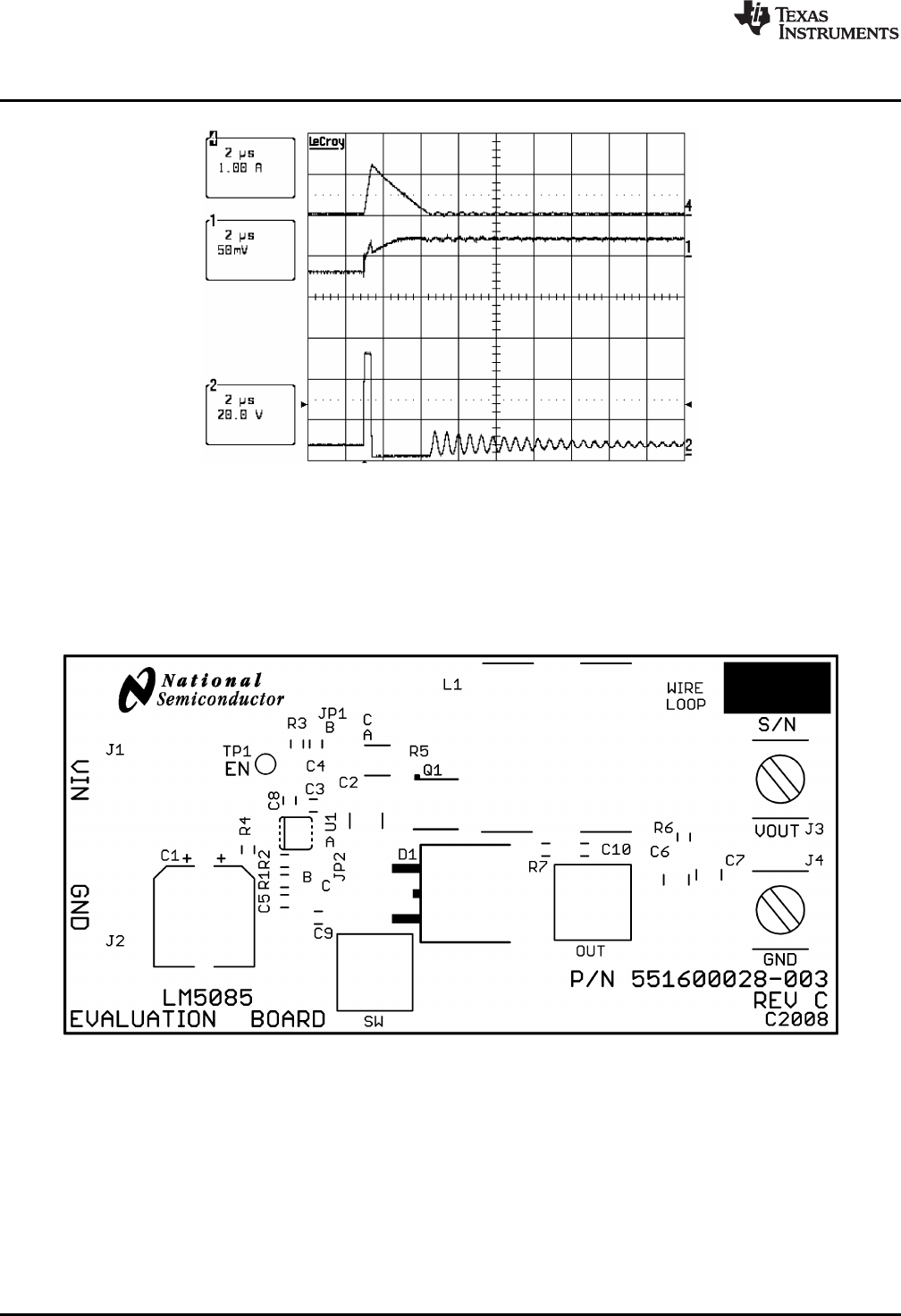

Figure 16. Discontinuous Conduction Mode (Expanded Scale)
13 PC Board Layout
Figure 17. Board Silkscreen
