www.ti.com Typical Waveforms

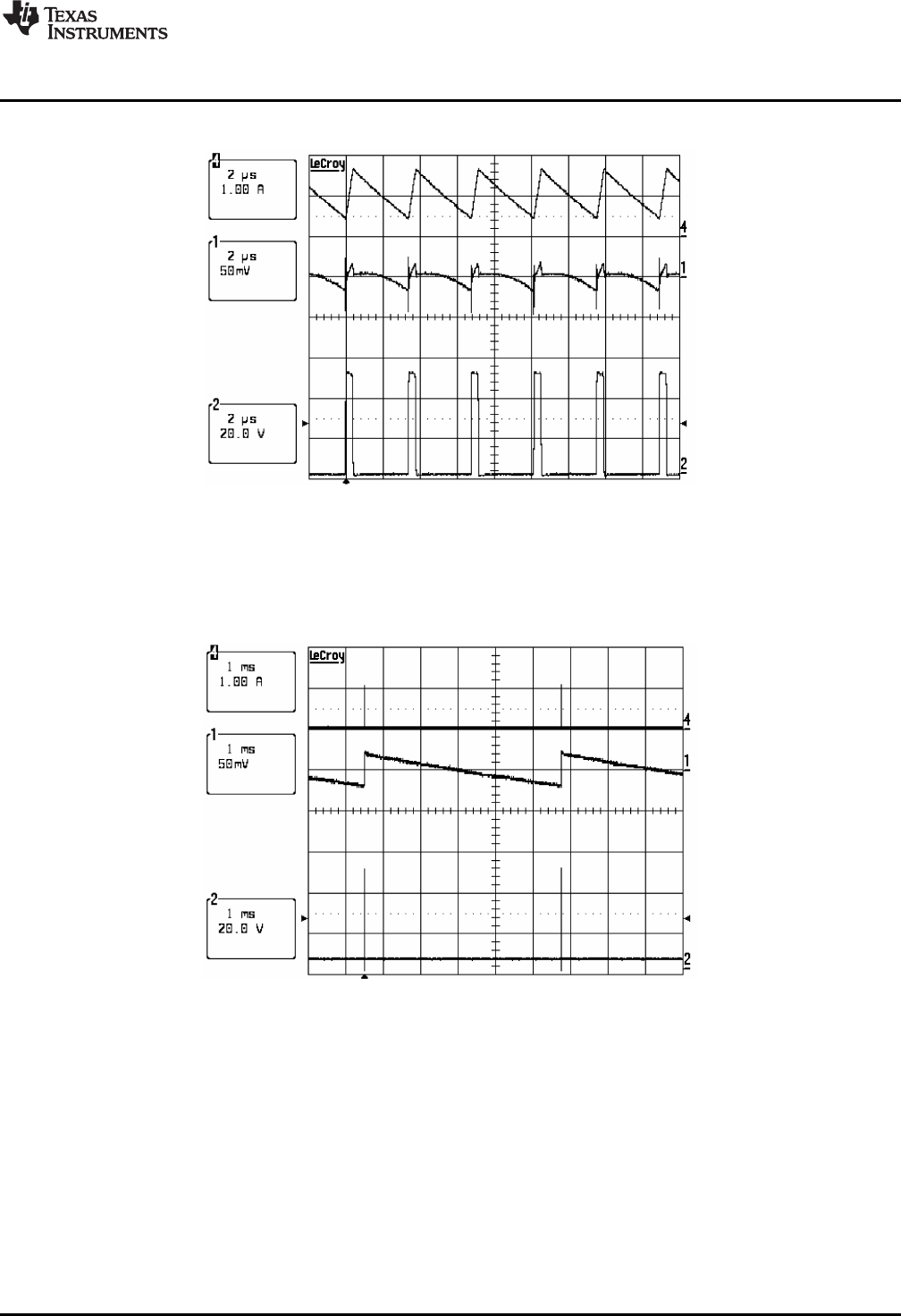

12 Typical Waveforms
Trace 4 = Inductor Current
Trace 1 = V
OUT
Trace 2 = SW Node
V
IN
= 48 V, I
OUT
= 1Amp
Minimum Ripple Configuration (Option A)
Figure 14. Continuous Conduction Mode
Trace 4 = Inductor Current
Trace 1 = V
OUT
Trace 2 = SW Node
V
IN
= 48 V, I
OUT
= 0
Figure 15. Discontinuous Conduction Mode
