LM4121
www.ti.com
SNVS073C –APRIL 2000–REVISED APRIL 2013
LM4121- (All Options) Typical Operating Characteristics (continued)
Unless otherwise specified, V
IN
= 3.3V, V
OUT
= 1.25V, I
LOAD
= 0, C
OUT
= 0.022µF, T
A
= 25°C and V
EN
= V
IN
.

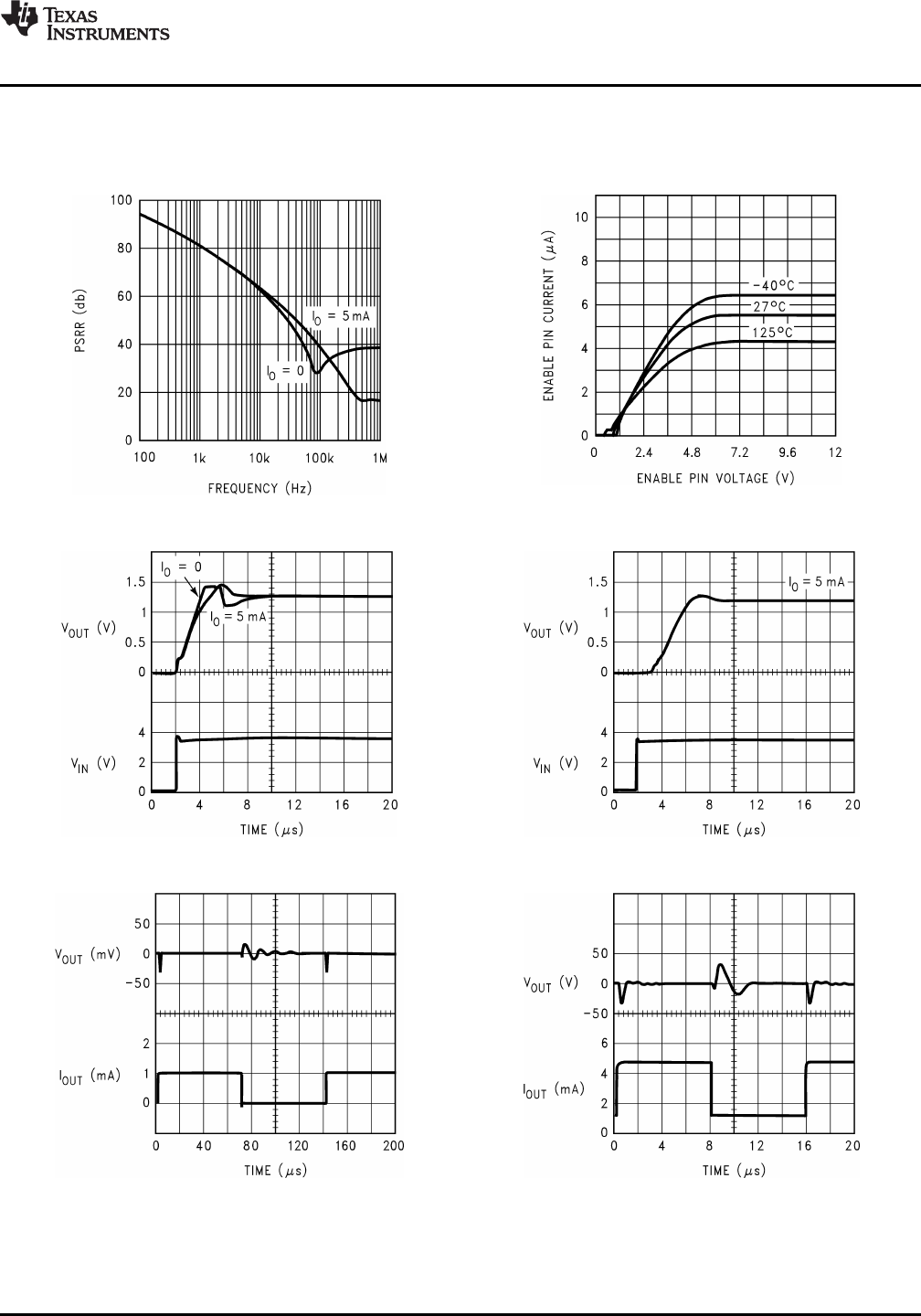

PSRR
vs
Frequency Enable Pin Current
Figure 10. Figure 11.
Start-Up Response Enable Response
Figure 12. Figure 13.
Load Step Response Load Step Response
Figure 14. Figure 15.
Copyright © 2000–2013, Texas Instruments Incorporated Submit Documentation Feedback 7
Product Folder Links: LM4121
