Evaluation Module Performance Characteristics

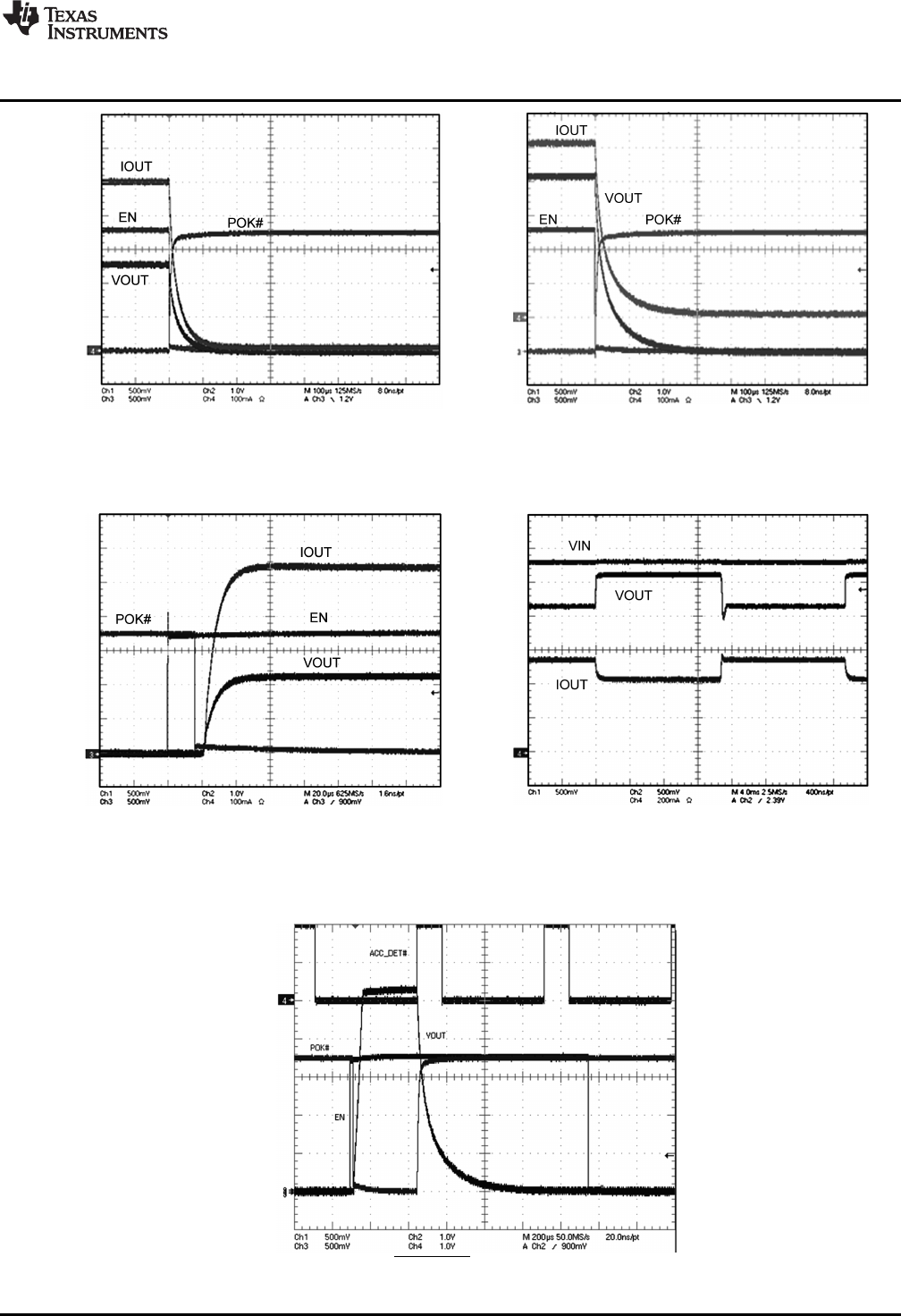

Figure 5. ENABLE Turn Off, VCC = 2.8V, IOUT = 0.5A Figure 6. ENABLE Turn Off, VCC = 5.3V, IOUT = 0.5A

(Resistive Load) (Resistive Load)

Figure 7. ENABLE Turn On Into An Overload Figure 8. Output Transient Response When Cycling

Condition (4Ω Resisitve Load), VCC = 5.3V Into and Out Of Current Limit (Electronic Load

Output), VCC = 5.3V

Figure 9. ENABLE and ACC_DET Cycled Independently, VCC = 5.3V
