ENABLE
ACC_PWR
GND
VCC
POK ACC_DET
A1
B1
C1
A2
B2
C2
LM34902/4
CPU
Accessory
200k
Accessory
Detect
VCC: 2.8V to 5.3V
200k
Evaluation Module Operation www.ti.com

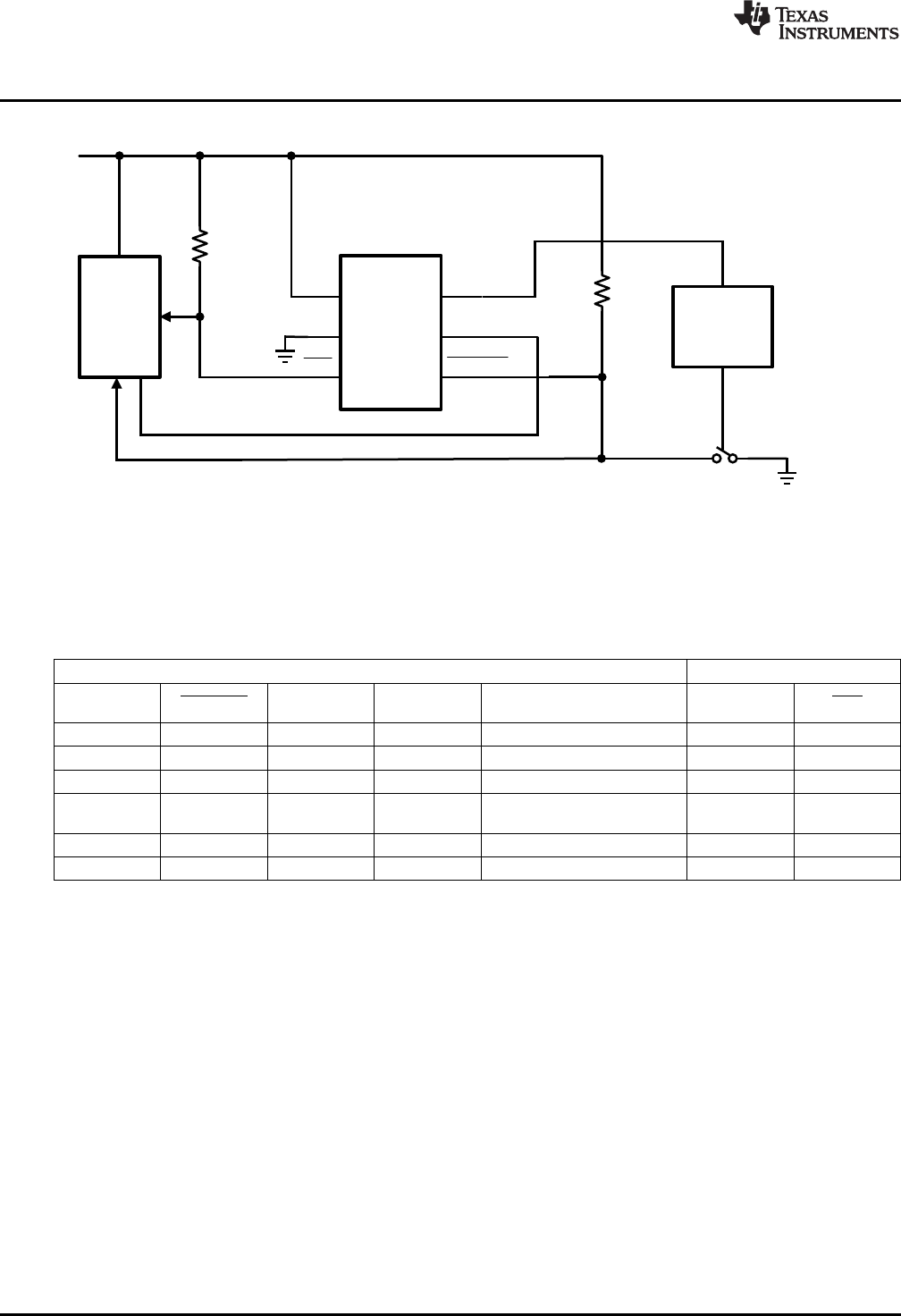

Figure 1. Typical System Schematic
Table 1. Power Switch Truth Table
Input
(1)
Output
Current Limit T
J
Limit PFET Switch
ENABLE ACC_DET 2.8V < VCC < 5.3V POK
Detected Exceeded Status
0 x No No Yes Open Open Drain
x 1 No No Yes Open Open Drain
0 to 1 0 No No Yes On Grounded
0 to 1 0 Yes No Yes Current Grounded
Limited
x x x Yes 2.2V < VCC < 5.3V Open Open Drain
0 x x No 2.2V < VCC < 2.8V Open Open Drain
(1)
x = stands for "don't care".
