EVM Assembly Drawing and PCB Layout

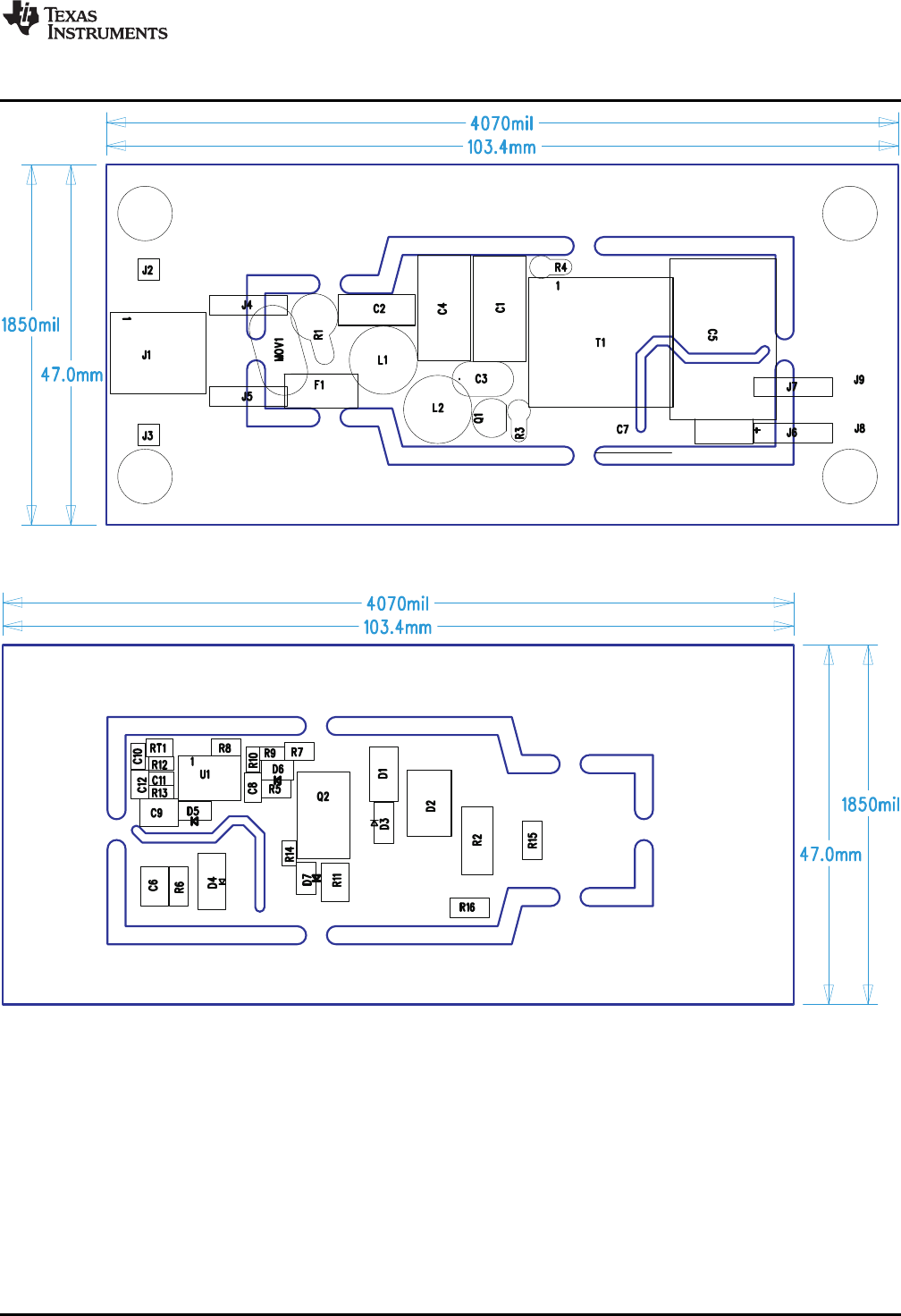

Figure 31. LM3447-A19-120VEVM Top Assembly Drawing (top view)
Figure 32. LM3447-A19-120VEVM Bottom Assembly Drawing (bottom view)
