Performance Data and Typical Characteristic Curves
www.ti.com

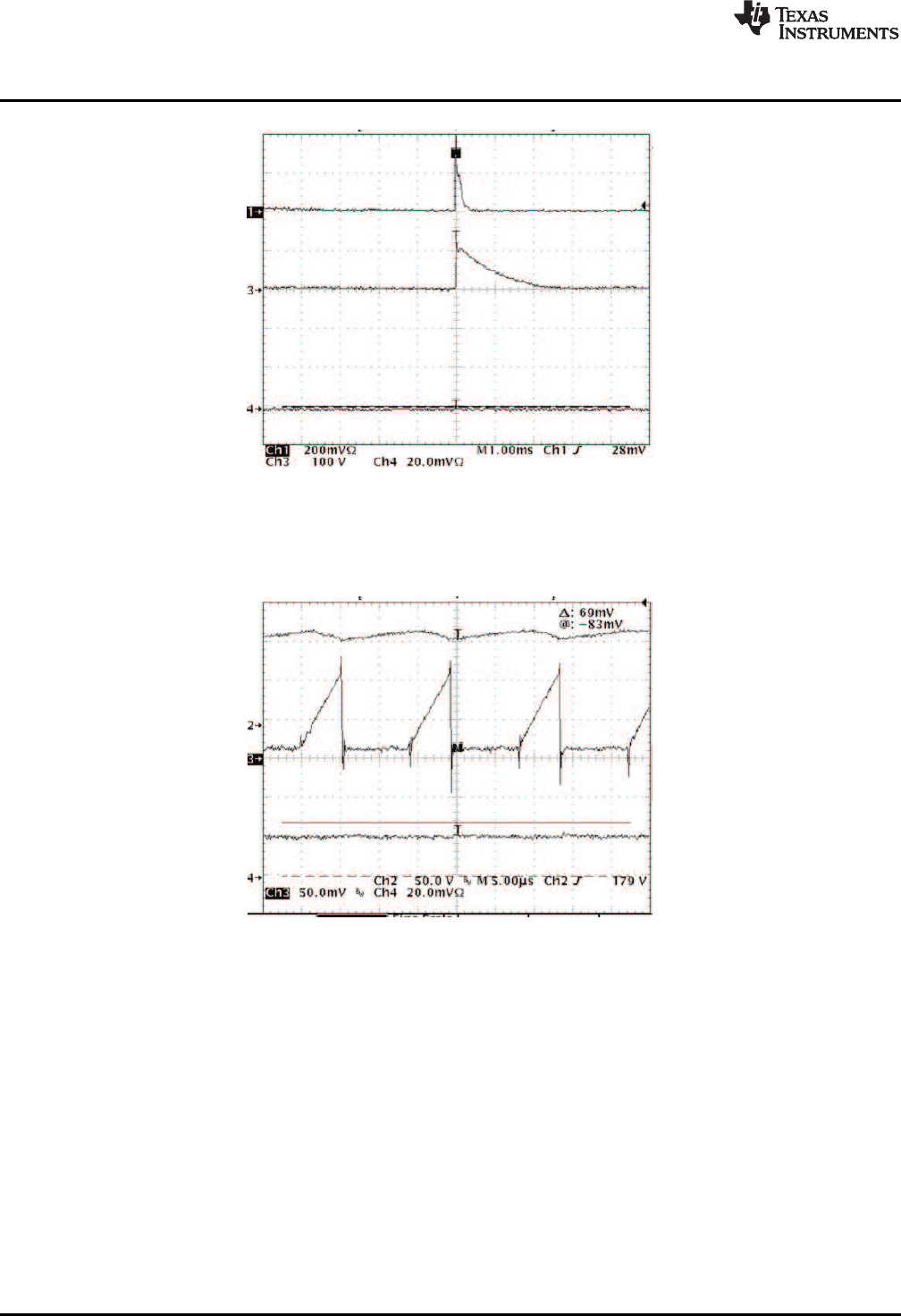

Figure 19. Dimmer 2.0 ms
(Ch4- LED current Ch3 - rectified line voltage Ch1 – line current)
7.10 Current Sense Waveform
Figure 20. Current Sense Waveform
(Ch4- LED current Ch2 - rectified line voltage Ch3 –R11 Current Sense)
