Ithd% vs. Input voltage
5
6
7
8
9
10
11
12
13
14
15
90 100 110 120 130 140
Input Voltage (VAC)
Ithd%)
Performance Data and Typical Characteristic Curves
www.ti.com
7.4 Input Current THD

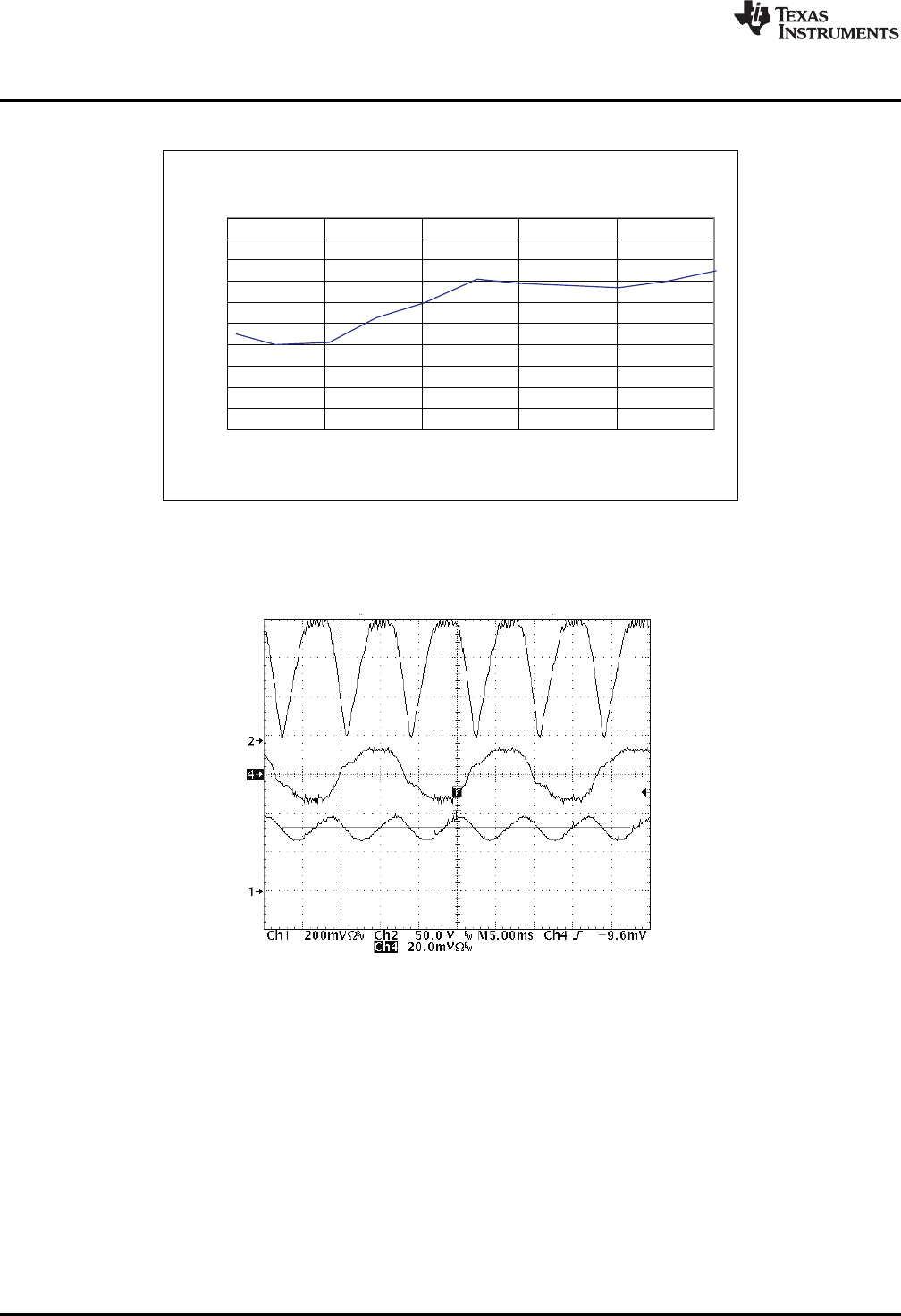

Figure 7. LM3447-A19-120VEVM- Ithd % vs Line Voltage
7.5 Output Ripple
Figure 8. Output Ripple
(Ch1 - LED current Ch2 - rectified line voltage Ch4- line current 200 mA/div)
10
LM3447-A19-120VEVM is a Phase-Dimmable, Primary-Side Regulated LED SLUU937–May 2012
Driver
Submit Documentation Feedback
