LM3150
SNVS561D –SEPTEMBER 2008–REVISED MARCH 2011 www.ti.com

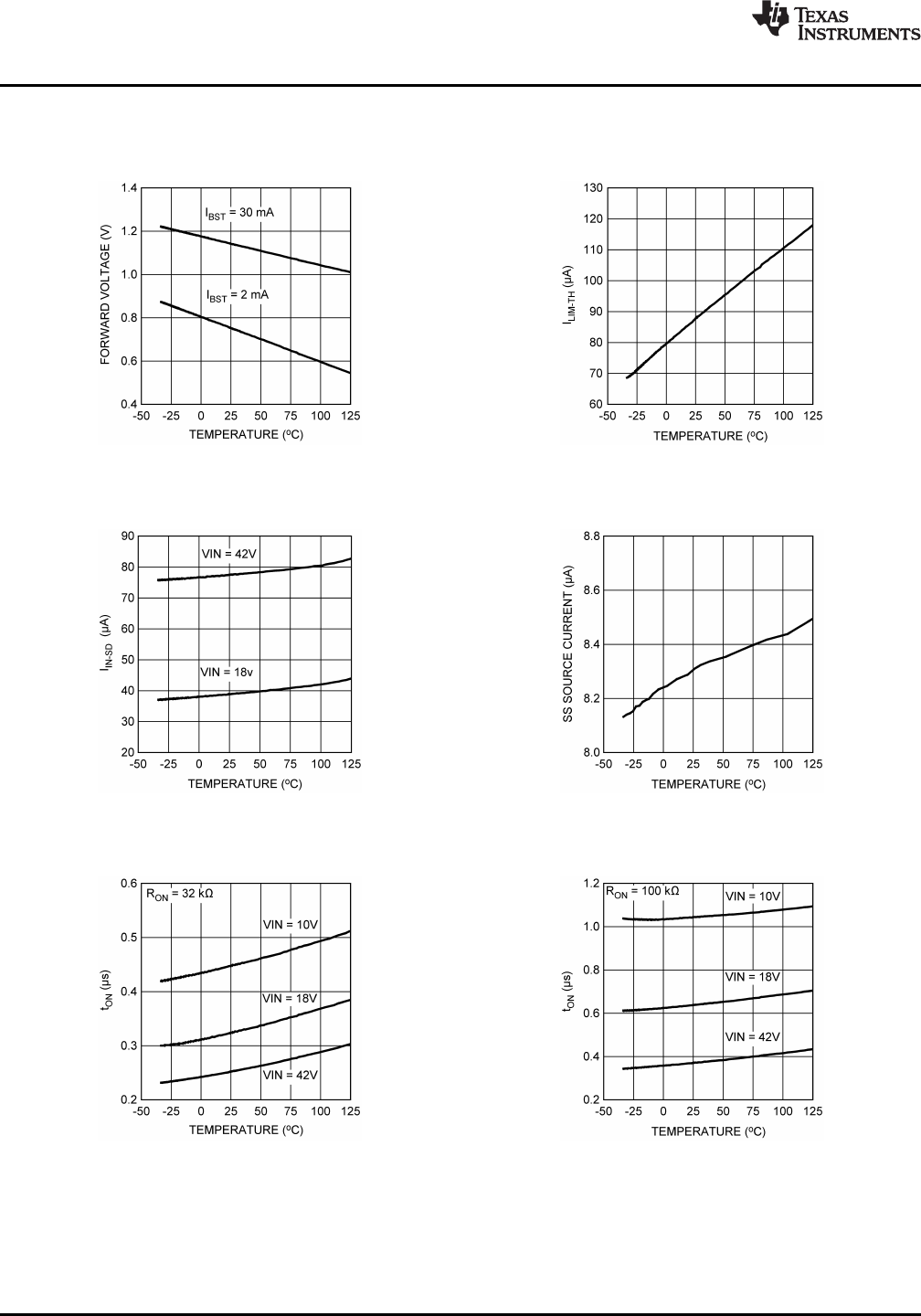

Typical Performance Characteristics
Boost Diode Forward Voltage I
LIM-TH
vs. vs.
Temperature Temperature
Figure 2. Figure 3.
Quiescent Current Soft-Start Current
vs. vs.
Temperature Temperature
Figure 4. Figure 5.
t
ON
t
ON
vs. vs.
Temperature Temperature
Figure 6. Figure 7.
