LM3150
www.ti.com SNVS561D –SEPTEMBER 2008–REVISED MARCH 2011

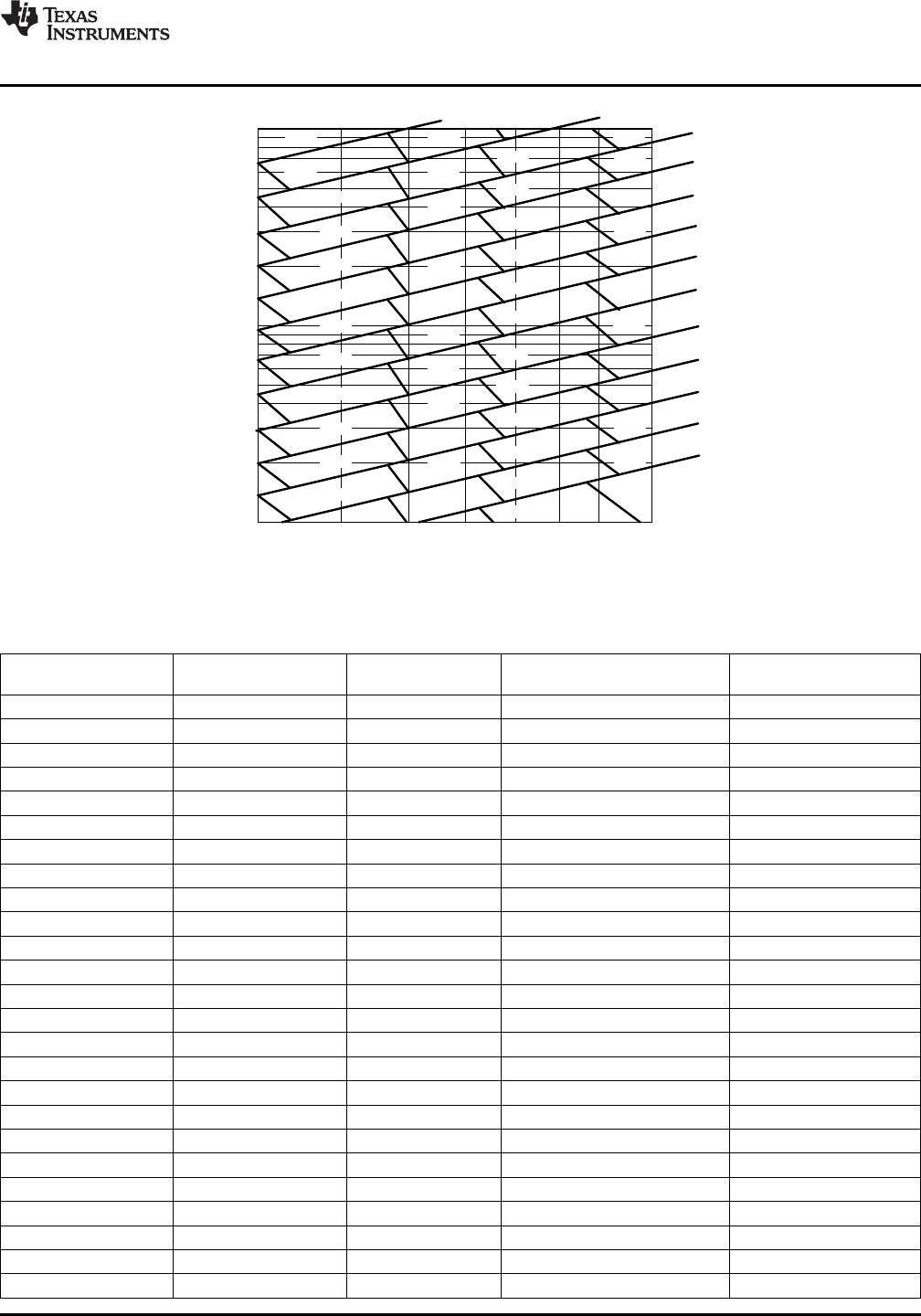

Figure 14. Inductor Nomograph
Table 1. Inductor Selection Table
Inductor Designator Inductance Current Part Name Vendor
(µH) (A)
L01 47 7-9
L02 33 7-9 SER2817H-333KL COILCRAFT
L03 22 7-9 SER2814H-223KL COILCRAFT
L04 15 7-9 7447709150 WURTH
L05 10 7-9 RLF12560T-100M7R5 TDK
L06 6.8 7-9 B82477-G4682-M EPCOS
L07 4.7 7-9 B82477-G4472-M EPCOS
L08 3.3 7-9 DR1050-3R3-R COOPER
L09 2.2 7-9 MSS1048-222 COILCRAFT
L10 1.5 7-9 SRU1048-1R5Y BOURNS
L11 1 7-9 DO3316P-102 COILCRAFT
L12 0.68 7-9 DO3316H-681 COILCRAFT
L13 33 9-12
L14 22 9-12 SER2918H-223 COILCRAFT
L15 15 9-12 SER2814H-153KL COILCRAFT
L16 10 9-12 7447709100 WURTH
L17 6.8 9-12 SPT50H-652 COILCRAFT
L18 4.7 9-12 SER1360-472 COILCRAFT
L19 3.3 9-12 MSS1260-332 COILCRAFT
L20 2.2 9-12 DR1050-2R2-R COOPER
L21 1.5 9-12 DR1050-1R5-R COOPER
L22 1 9-12 DO3316H-102 COILCRAFT
L23 0.68 9-12
L24 0.47 9-12
L25 22 12-15 SER2817H-223KL COILCRAFT
