t
DD,
t
CD
OUT
IN
0V
0V
0V
20%
80%
80%
20%
OUT+
OUT-
VO = (OUT+) ± (OUT-)
t
F
t
R
A
B
VOH = VDD
VOL = VDD - 500mV
0V (DIFF)
Vo = 1000 mVp-p
Single-ended
Waveforms
@ A and B
Differential
Waveform
A - B
Vocm
AV
cc
50Ö50Ö
DS34RT5110
SNLS310G –MARCH 2009–REVISED APRIL 2013
www.ti.com

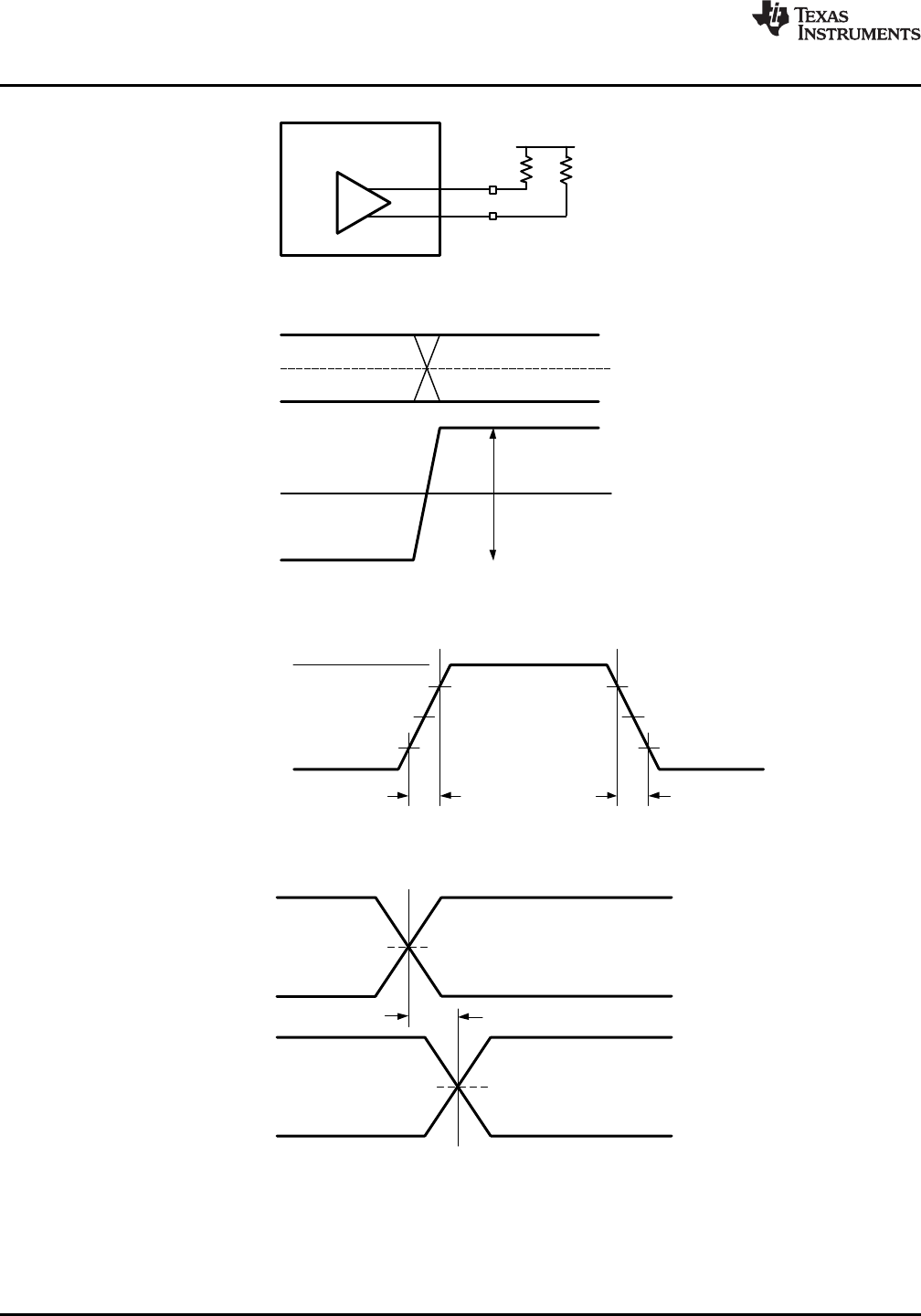

Figure 2. CML Output Swings at A/B (VOD_CRL = 24 kΩ)
Figure 3. CML Output Transition Times
Figure 4. CML Latency Delay Time
