DS34RT5110
www.ti.com
SNLS310G –MARCH 2009–REVISED APRIL 2013
Typical Performance Characteristics as a Repeater (continued)

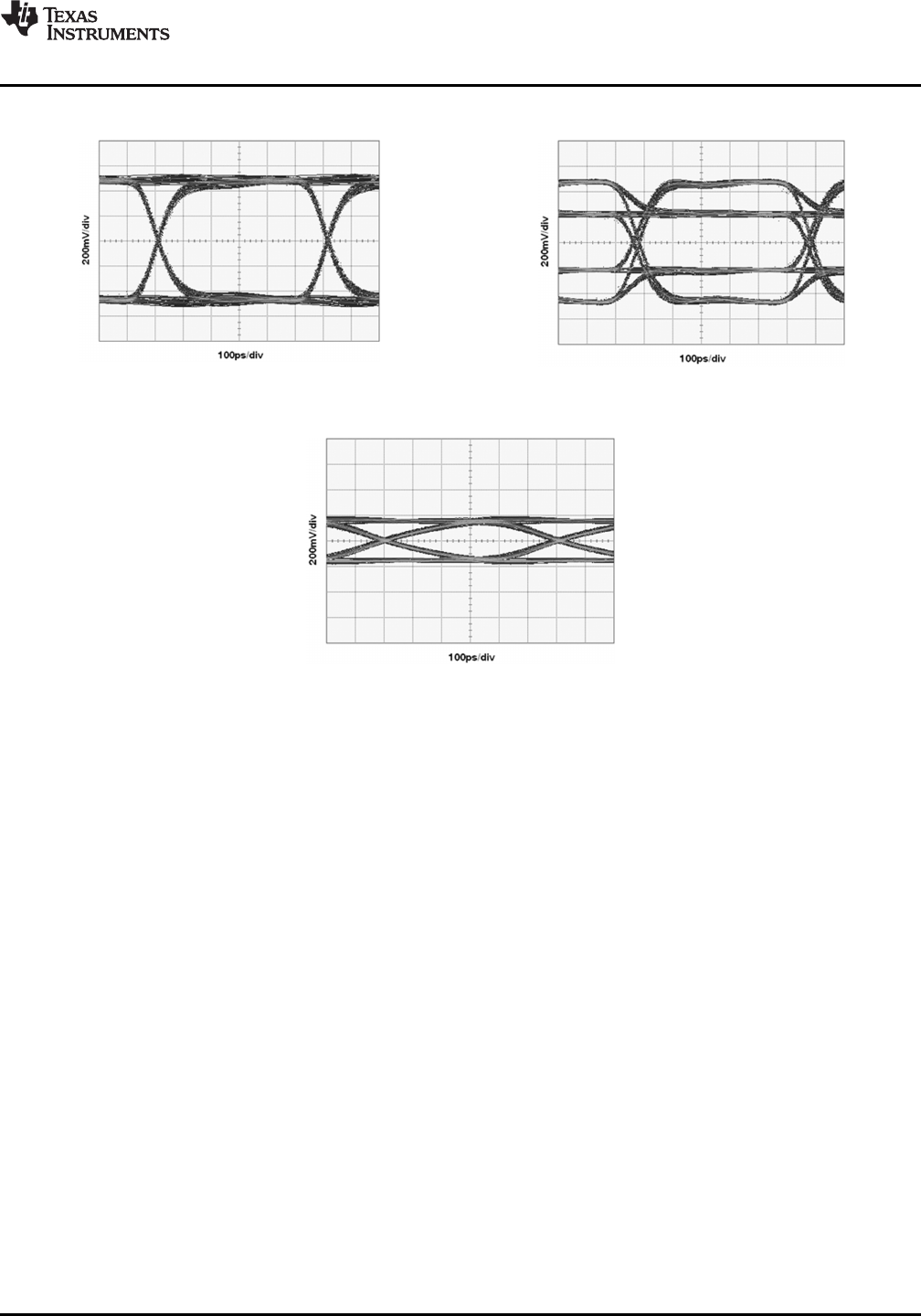

Figure 29. Device Source Eye Diagram at TPC Figure 30. Device Source Eye Diagram at TPC
(1.65 Gbps, Cable A = 35m 28 AWG HDMI, (1.65 Gbps, Cable A = 35m 28 AWG HDMI,
EQ = 0x05, BYPASS = 0, DE = 0dB) EQ = 0x05, BYPASS = 0, DE = -6dB)
Figure 31. System Sink Eye Diagram at TPD
(1.65 Gbps, Cable A = 35m 28 AWG HDMI, Cable B = 10m 28AWG HDMI, EQ = 0x05, BYPASS = 0, DE = -6dB)
