DS34RT5110
SNLS310G –MARCH 2009–REVISED APRIL 2013
www.ti.com
Typical Performance Characteristics as a Repeater (continued)

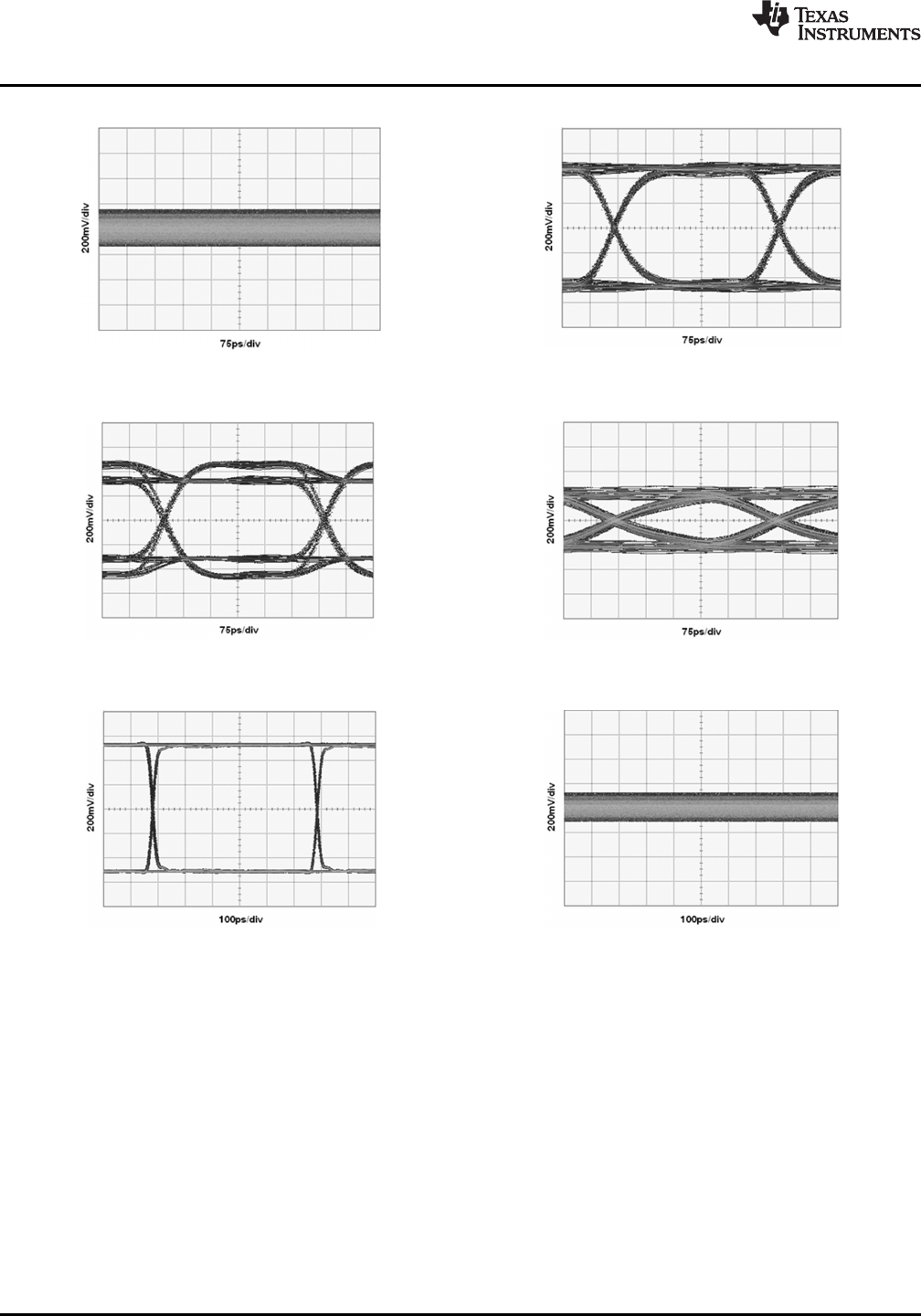

Figure 23. Device Sink Eye Diagram at TPB Figure 24. Device Source Eye Diagram at TPC
(2.25 Gbps, Cable A = 25m 28 AWG HDMI) (2.25 Gbps, Cable A = 25m 28 AWG HDMI,
EQ = 0x05, BYPASS = 0, DE = 0dB)
Figure 25. Device Source Eye Diagram at TPC Figure 26. System Sink Eye Diagram at TPD
(2.25 Gbps, Cable A = 25m 28 AWG HDMI, (2.25 Gbps, Cable A = 25m 28 AWG HDMI, Cable B = 7.5m
28AWG HDMI, EQ = 0x05, BYPASS = 0, DE = -3dB)
EQ = 0x05, BYPASS = 0, DE = -3dB)
Figure 27. System Source Eye Diagram at TPA Figure 28. Device Sink Eye Diagram at TPB
(1.65 Gbps) (1.65 Gbps, Cable A = 35m 28 AWG HDMI)
18 Submit Documentation Feedback Copyright © 2009–2013, Texas Instruments Incorporated
Product Folder Links: DS34RT5110
