DS34RT5110
DS34RT5110
DS34RT5110
DS34RT5110
DS34RT5110
DS34RT5110
DVI / HDMI Matrix Switch
Source
Source
Source
Sink
Sink
Sink
HDMI Source
20m CAT5 Cable
DS34RT5110
HOP 1
SER/A/V Decoder
DS34RT5110
HOP 2
DS34RT5110
Final HOP
DES / Display
Processor
HDMI Sink
20m CAT5 Cable
20m CAT5 Cable
20m CAT5 Cable
MODE = 1
MODE = 1
MODE = 0 (Default)
DS34RT5110
www.ti.com
SNLS310G –MARCH 2009–REVISED APRIL 2013

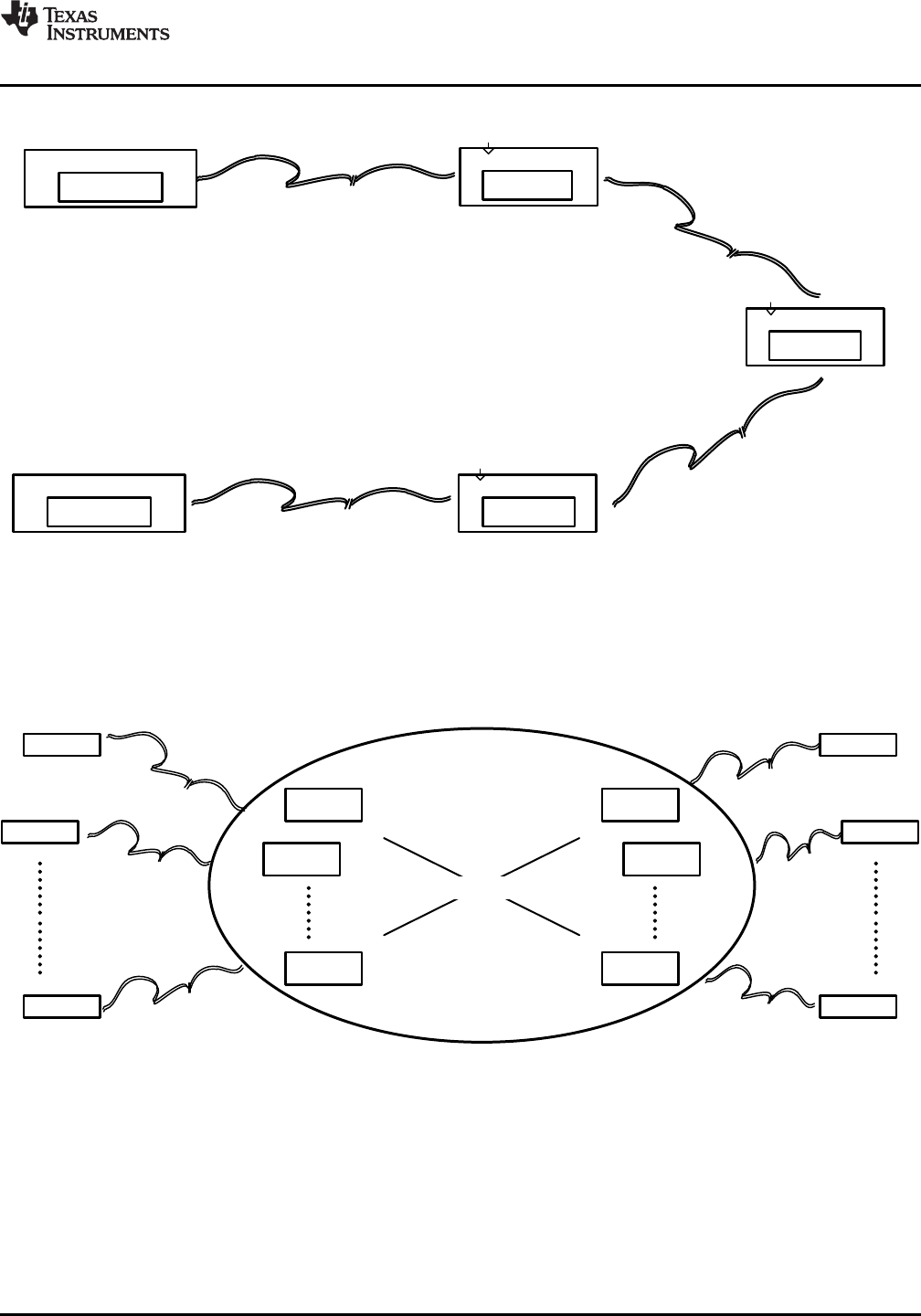

Figure 9. Multiple Hop Systems
MATRIX SWITCH APPLICATION
For the security system with matrix DVI/HDMI switches, the DS34RT5110 is ideal to equalize the long cable
reach requirement from the Sources, clean the system jitter due to the complexity of PCB routings, and
regenerate clean TMDS signals to the Sinks as shown in Figure 10.
Figure 10. Matrix Switch Systems
DUAL LINK APPLICATION
The DS34RT5110 supports DVI dual link applications requiring ultra-high resolutions for QXGA and WQXGA.
Two DS34RT5110 devices are configured as shown in Figure 11. This configuration is only recommended for a
single dual link repeater application.
