The Windows Application
www.ti.com

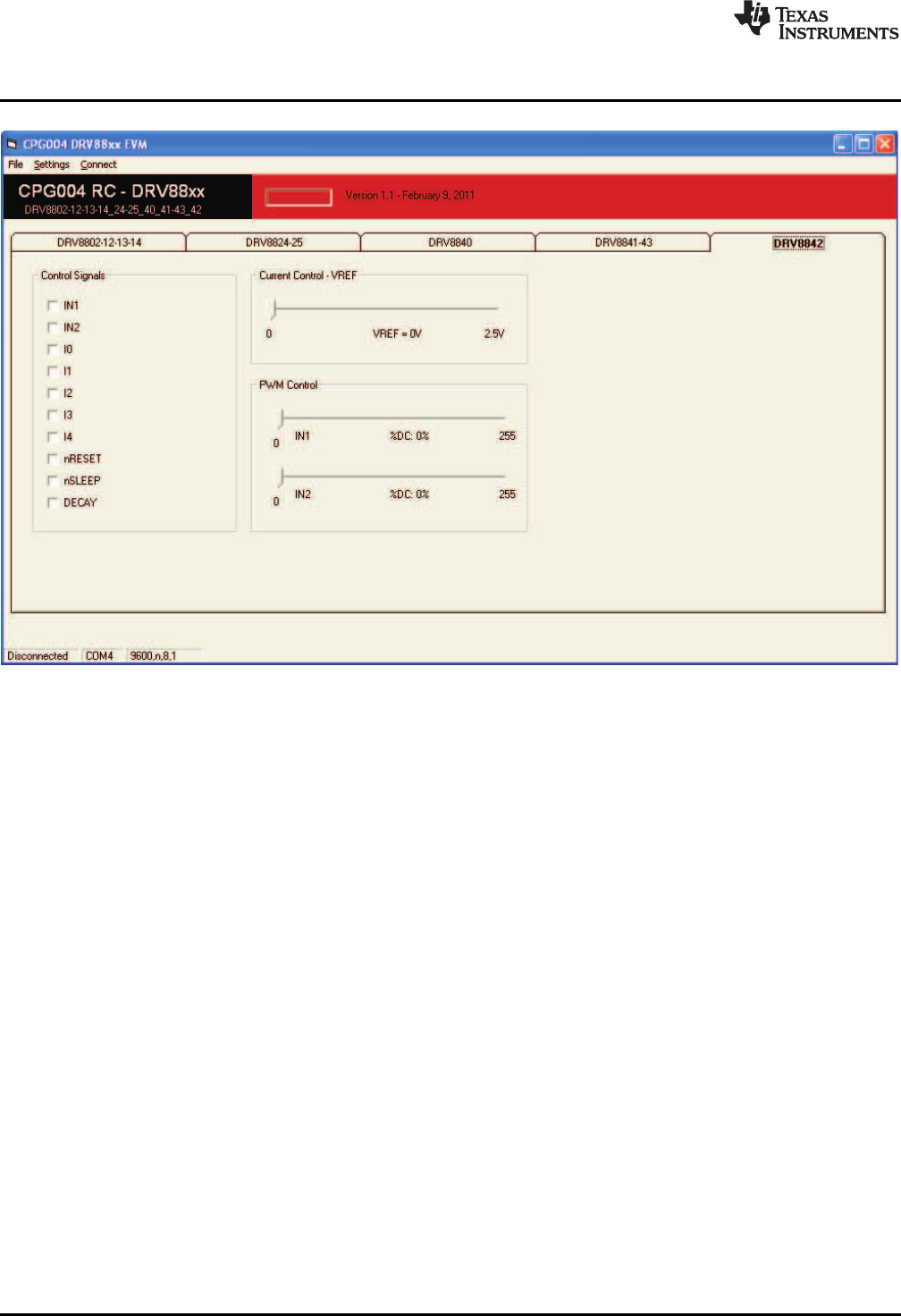

Figure 4. DRV8842 Tab
A look at the DRV8842 tab on the CPG004 DRV88xx EVM Windows Application.
This tab is virtually identical to the DRV8840 tab. Only labels of respective signals differ:
• ENABLE becomes IN1
• PHASE becomes IN2
