t − Time − s
Voltage − (2V/div)
0 200m 400m 600m 800m 1
SDA
Acceleration
[OUT+] − [OUT−] (Filtered)
VDD = 3.6 V
ERM Open Loop
Internal Trigger
Sequence = 0x01, 0x48
t − Time − s
Voltage − (2V/div)
0 200m 400m 600m 800m 1
SDA
Acceleration
[OUT+] − [OUT−] (Filtered)
VDD = 3.6 V
LRA Closed Loop
Internal Trigger
Transition Click 1 − 100%
t − Time − s
Voltage − (2V/div)
0 40m 80m 120m 160m 200m
IN/TRIG
Acceleration
[OUT+] − [OUT−] (Filtered)
VDD = 3.6 V
ERM Open Loop
External Edge Trigger
Strong Click − 60%
t − Time − s
Voltage − (2V/div)
0 40m 80m 120m 160m 200m
IN/TRIG
Acceleration
[OUT+] − [OUT−] (Filtered)
VDD = 3.6 V
LRA Closed Loop
External Level Trigger
Strong Click − 100%
DRV2605
www.ti.com SLOS825B –DECEMBER 2012–REVISED JANUARY 2014

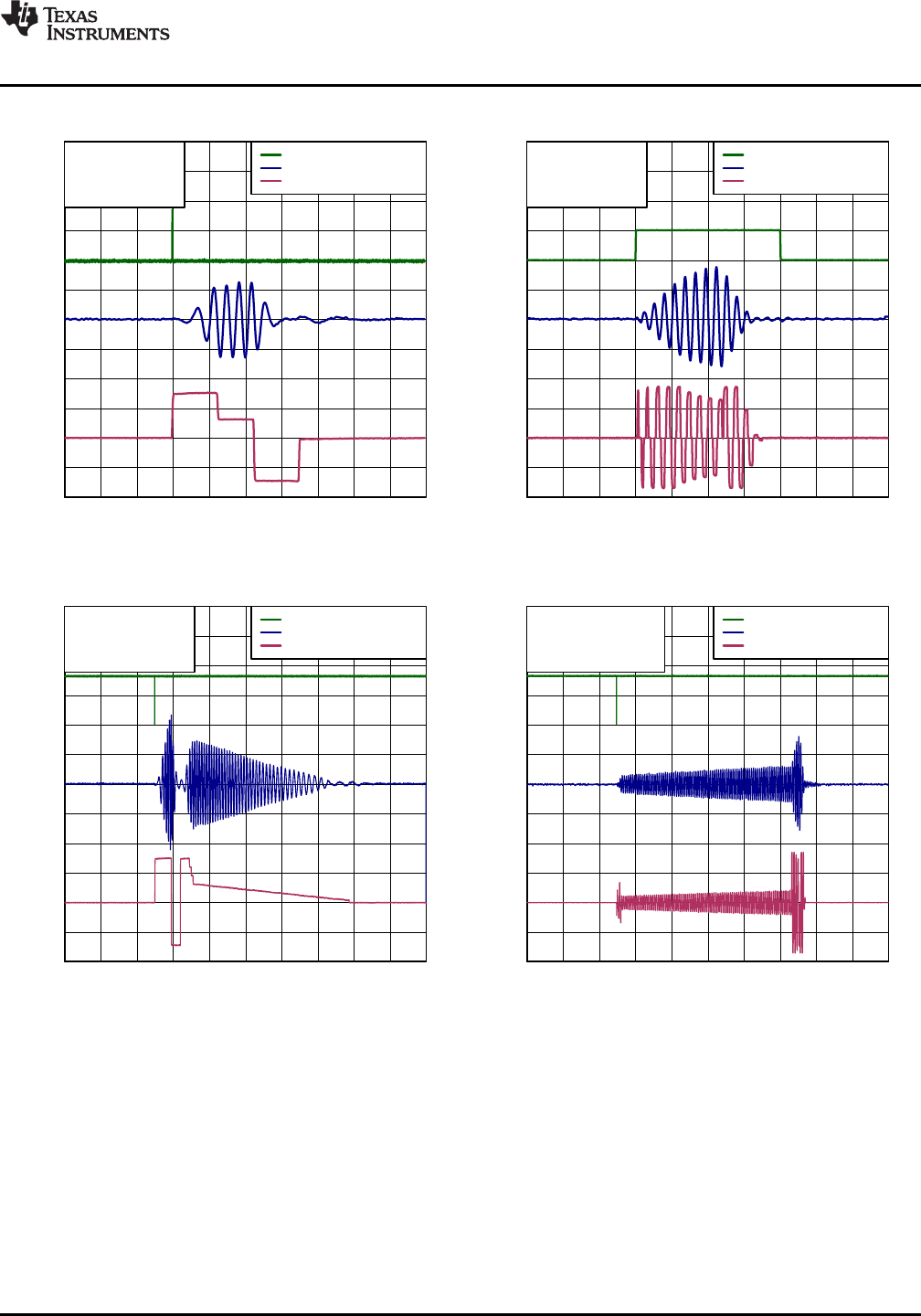

ERM Click (Library) LRA Click (Library)
Figure 4. Figure 5.
ERM Click-Bounce (Library) LRA Transition-Click (Library)
Figure 6. Figure 7.
