A1 A3
B1 B2 B3
C1 C2 C3
EN
OUT+
SCL
IN/TRIG SDA GND
OUT-
VDD
A2
VREG
DRV2605
SLOS825B –DECEMBER 2012–REVISED JANUARY 2014
www.ti.com
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
ORDERING INFORMATION
Device Packaging Symbolization
DRV2605YZFR 3000 Piece Tape and Reel 2605
DRV2605YZFT 250 Piece Tape and Reel 2605

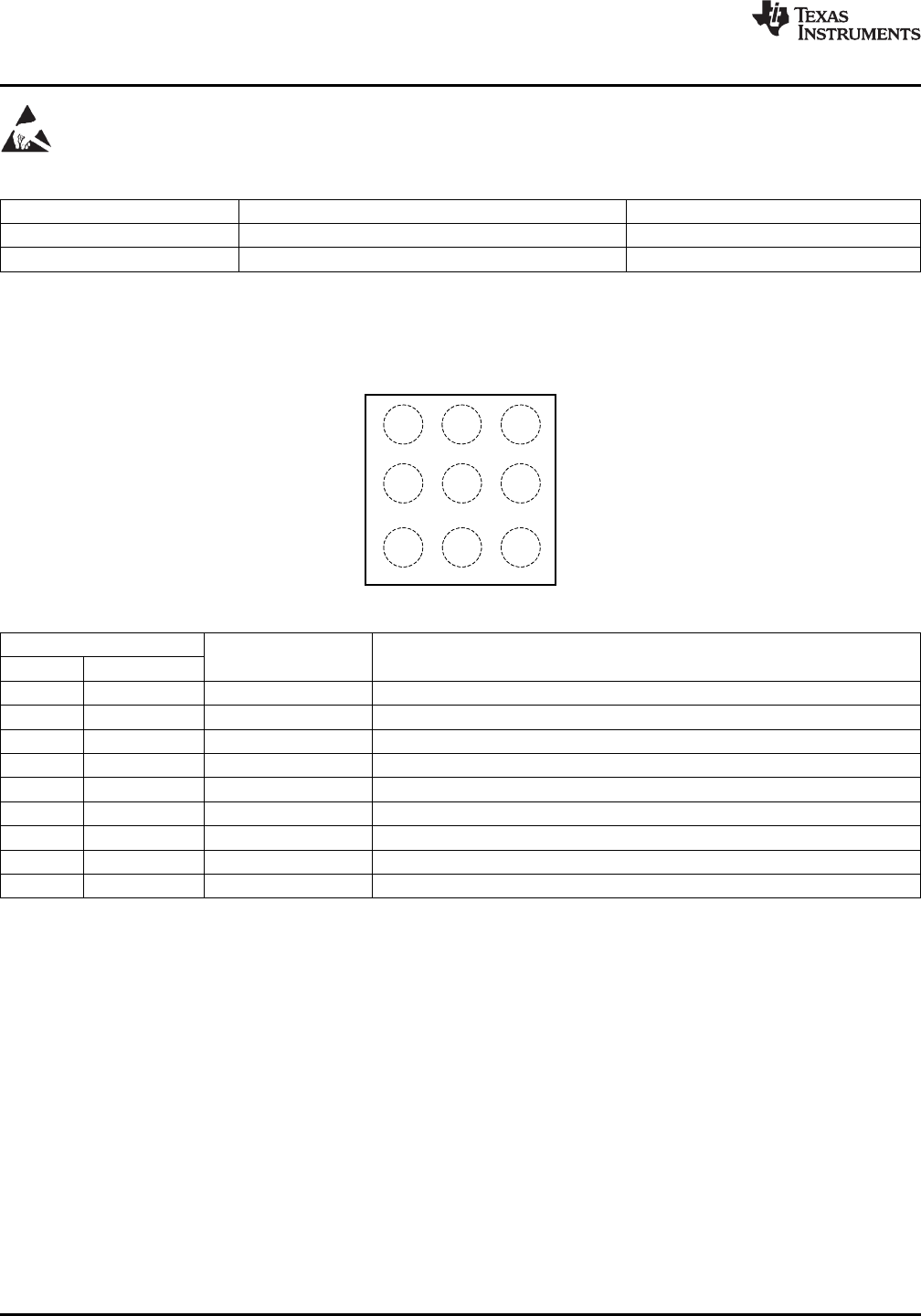

PINOUT INFORMATION
0.5 mm Pitch BGA (WCSP)
TOP VIEW
PIN FUNCTIONS
PIN
INPUT/ OUTPUT/
DESCRIPTION
POWER (I/O/P)
NAME NO. (WCSP)
EN A1 I Device enable
IN/TRIG B1 I Multi-mode Input. I2C selectable as PWM, Analog, or Trigger
SDA B2 I/O I
2
C Data
SCL C1 I I
2
C Clock
VREG A2 O 1.8 V regulator output. 0.1 µF capacitor required
OUT+ A3 O Positive haptic driver differential output
OUT– C3 O Negative haptic driver differential output
VDD C2 P Supply Input (2.5 V to 5.5 V)
GND B3 P Supply ground
