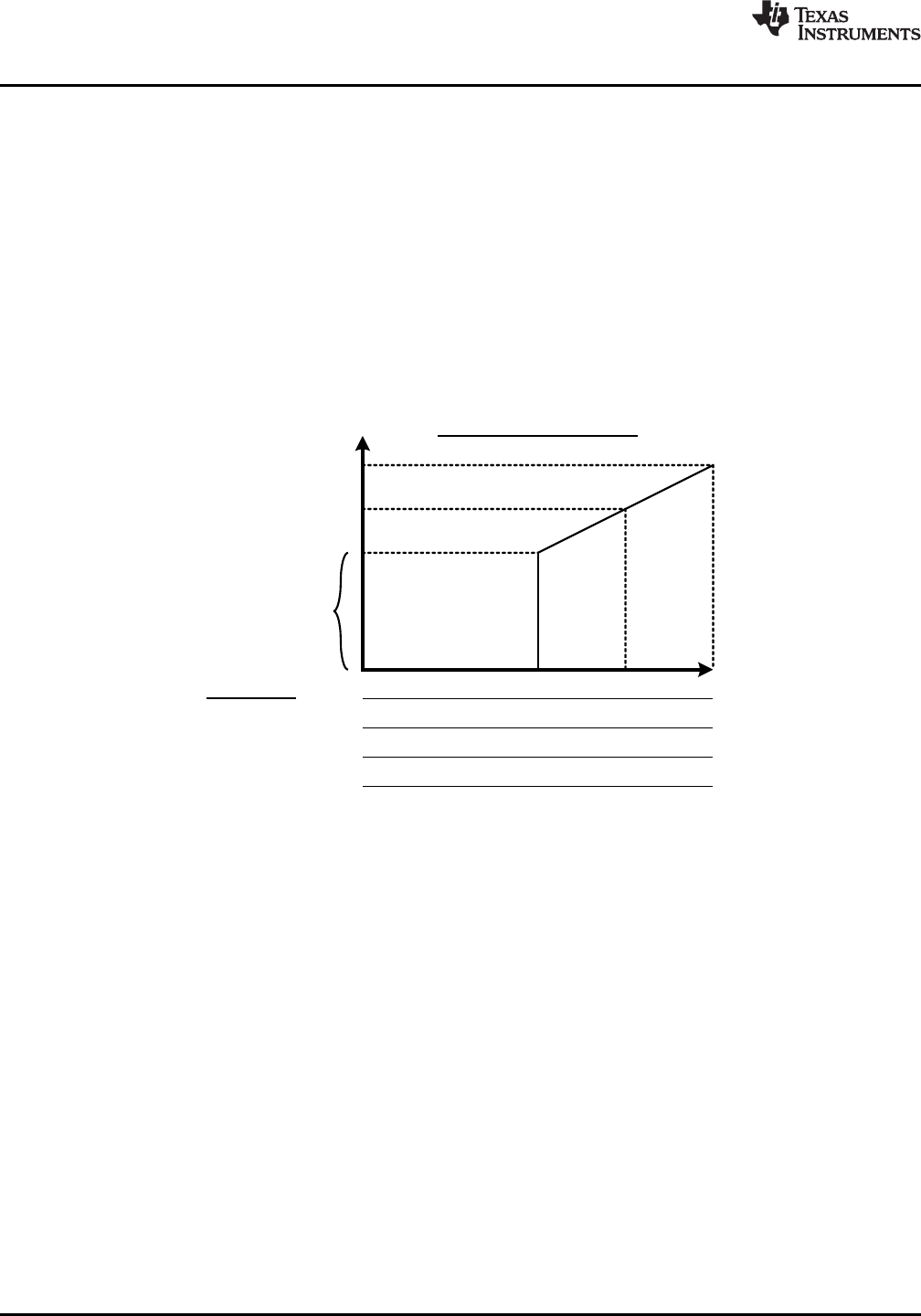

RTP (8-bit) DataFormat_RTP = 0
Input
Steady-State
Output Magnitude
RatedVoltage[7:0]
½ RatedVoltage[7:0]
PWM
Input Interface
0% 50% 100%
RTP (8-bit) DataFormat_RTP = 1
0x00
Closed Loop, BiDir_Input = 1
0x7F 0xFF
Full Braking
0x81 0x00 0x7F0x3F
0xBF
75%
DRV2605
SLOS825B –DECEMBER 2012–REVISED JANUARY 2014
www.ti.com
Closed Loop Mode, Bi-Directional
In closed loop, bi-directional mode, the gives automatic overdrive and braking for both ERM and LRA devices.
This mode preserves compatibility with data created in open-loop signaling by keeping zero drive strength at the
mid-scale value. When input values less than the mid-scale value are given, the DRV2605 will treat them the
same as the mid-scale with zero drive.
The reference level for steady-state, full-scale drive is set by the RatedVoltage[7:0] value (once auto calibration
is performed). The output voltage may momentarily exceed the rated voltage for automatic overdrive and
braking, but will not exceed the ODClamp[7:0] voltage. Braking happens automatically based on the input signal
when the back-EMF feedback determines that it is necessary. Since this mode preserves compatibility with
existing/legacy dataDRV2605 formats, yet still provides closed loop benefits, it is the default configuration at
power up.
The RTP mode has 8 bits of resolution over the I2C bus. The RTP data can be in either signed (2’s complement)
or unsigned format as defined by DataFormat_RTP.
Restrictions: This mode is compatible with all DRV2605 interfaces except for TS2200 Library A (with fixed
overdrive programming). Library A should only be used in open loop mode. Libraries B through E (no overdrive)
may take advantage of this mode for automatic overdrive and braking.
