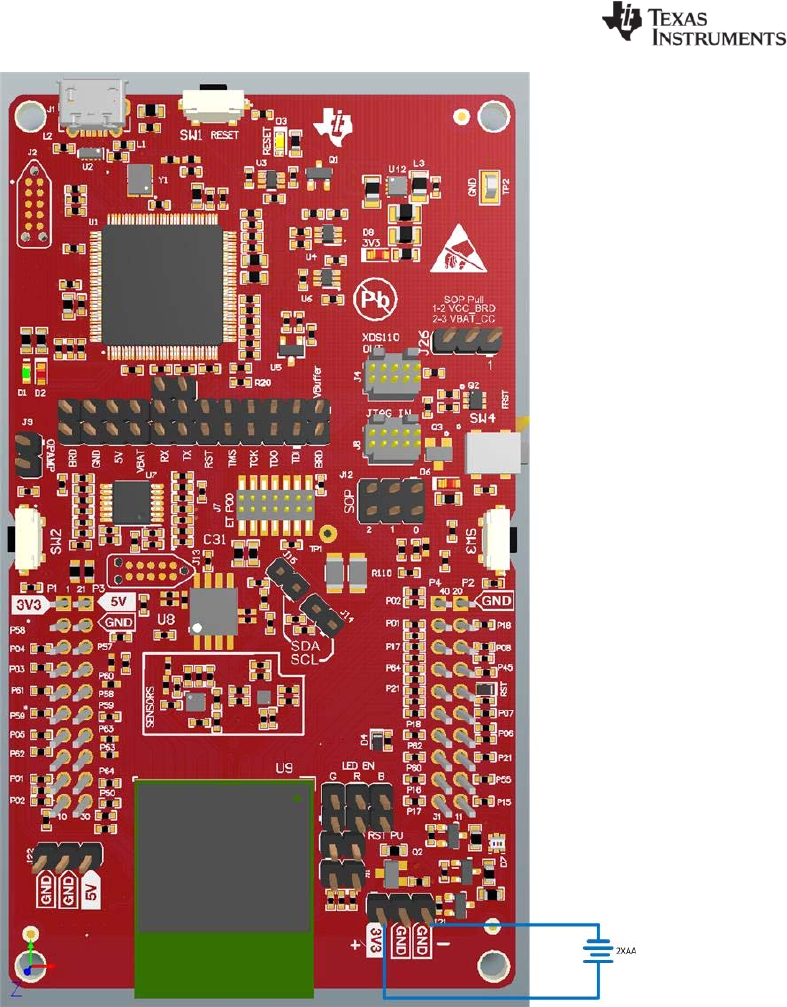

Figure7‐4:BatteryPoweringOnlytheCC3220MODASFandSerialFlash

7.2 MeasuringtheCC3220MODAxCurrentDraw
TomeasurethecurrentdrawoftheCC3220device,usetheVBATjumperonthejumperisolationblock
(J18).Thecurrentmeasure din thismodeincludesonlytheCC3220MODASxdeviceandtheserialflash
currentandnoexternalblocks.However,ifaGPIOoftheCC3220MODASxisdrivingahighcurrent
load
liketheLED,thenthatisalsoincludedinthismeasurement.

