User's Manual




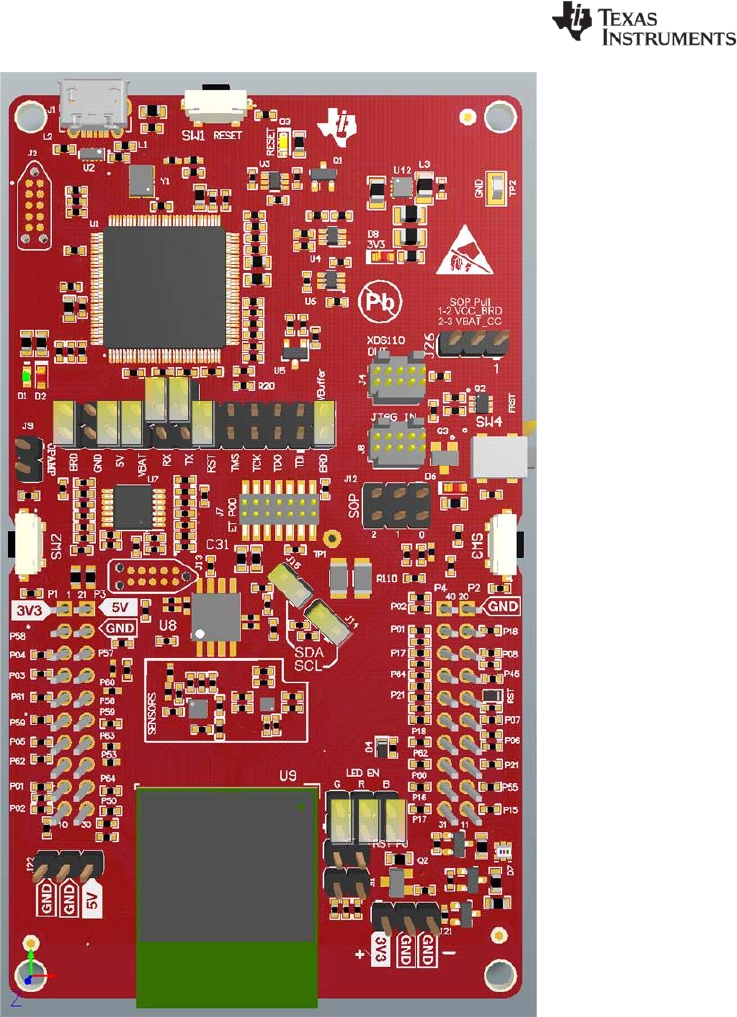

Figure7‐1:PoweringfromUSB(YellowBlocksShowJumpersPlaced)

7.1.2 BatteryPower(2x1.5V)
TheLaunchPadcanalsobepoweredfromanexternalbatterypackbyfeedingthevoltageontheJ21
header.Thisinputfeaturesreversevoltageprotectiontoensurethattheboard isnotdamage d dueto
anaccidentalreversevoltage.Takethefollowing pre cautionswhileusingtheboardwithabattery.
1)
RemovetheUSBcable. 
2) Plug‐inthebatterypackonJ20withcorrectpolarity(seeFigure7‐2below).
