User's Manual




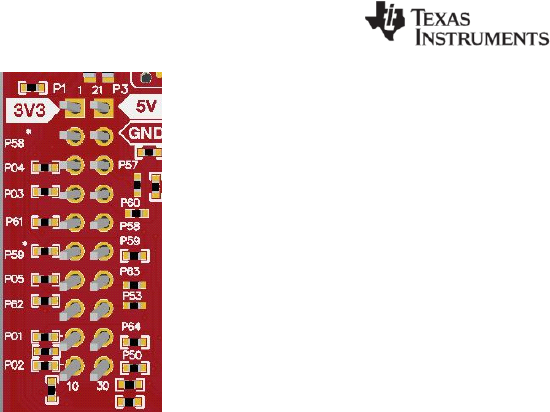

Figure7‐1:Pin1MarkingontheLaunchPad(Tagwith3V3Mark)
7.1 Power
TheLaunchPadisdesignedsothatit canbepoweredbytheUSBconnectionorbyexternal2xAAor
2xAAAbatteries.

7.1.1 USBPower
TheLaunchPadisdesignedtoworkfromtheUSBprovidedpowersupply.TheLaunchPadenumeratesas
abus‐powereddeviceonthecomputer.WhentheboardispoweredfromtheUSBconnector,ensure
thatthejumpersareplacedonthefollowingheaders,asshowninFigure7‐1.

