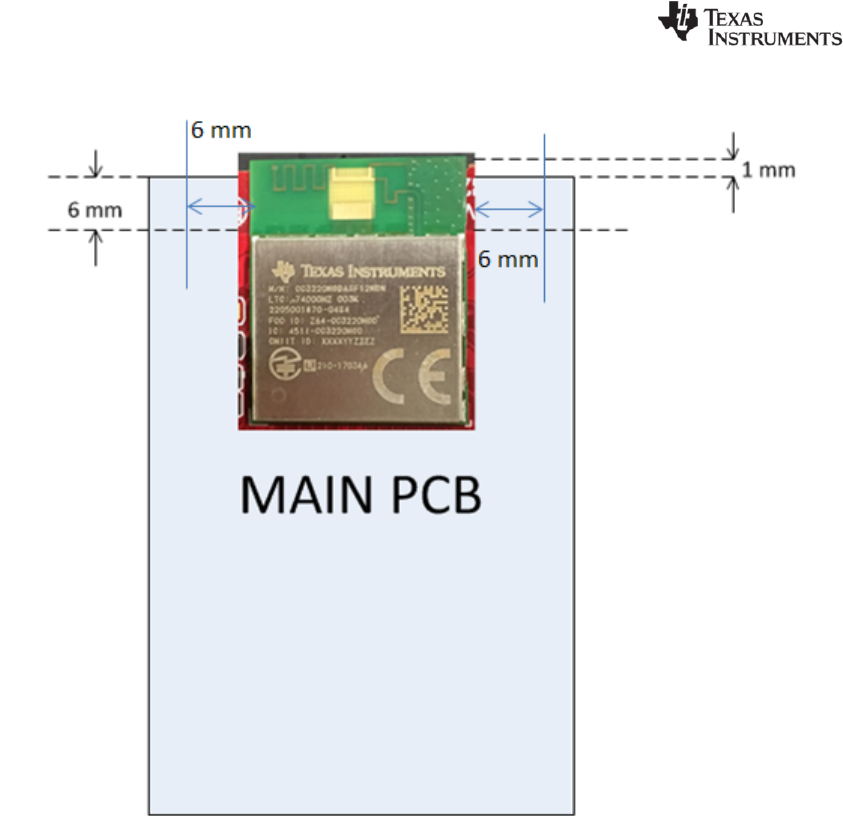

Figure6‐13:CC3220MODAxmoduleplaceme ntrules.
7. LAUNCHCC3220MODASFOperationalSetupandTesting
AcompatibleBoosterPackcanbestackedontopoftheLaunchPadusingthe2×20‐pinconnectors.The
connectors do not have a key to prevent the misalignment of the pins or reverse connection. Ensure that
the VCC and 5-V pins are aligned with the BoosterPack header pins. On the CC3220MODASx

LaunchPad, a small white symbol is provided near pin 1 (see Figure 7-1) to orient all BoosterPacks.
