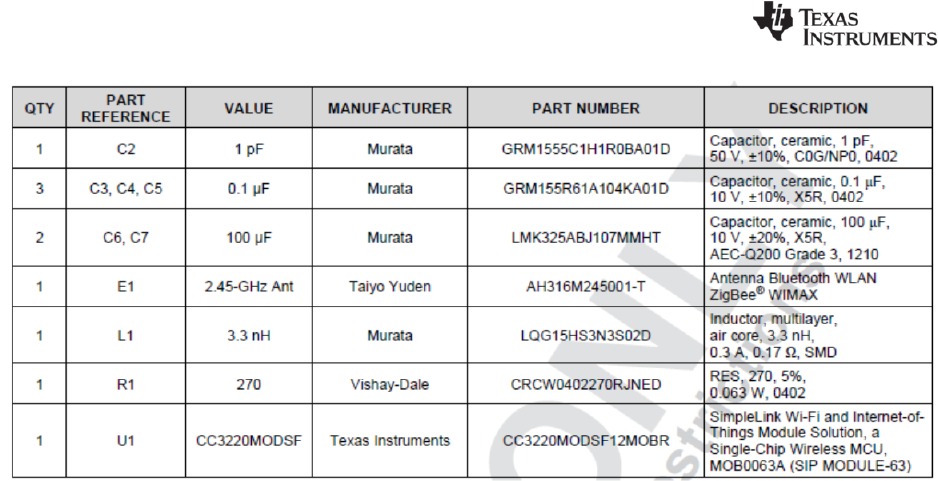

Table4‐1:CC3120MODEnginearea referenceBOM

6. LayoutGuidelines
TheintegratoroftheCC3220MODxandCC3220MODAxmodulesmustcomplywiththePCBlayout
recommendationsdescribedinthefollowingsubsectionstopreserve/minimizetheriskwithregulatory
certificationsforFCC,IC,CE,MIC,andSRRC.Moreover,TIrecommendscustomersfollowtheguidelines
describedinthissectiontoachievesimilarperformance.

6.2 CC3220MODxBoardLayout
Thereferencelayoutconsistsofa4layerdesign.Figure6‐1showsCC3220MODxToplayer.
