User's Manual




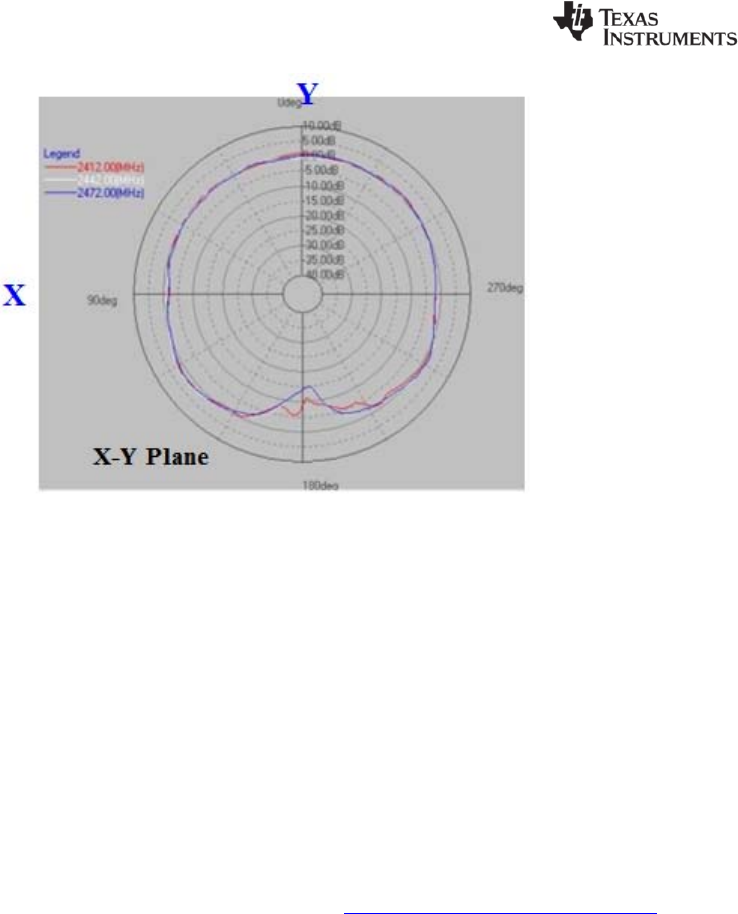

Figure4‐4:X‐YradiatedpatternoftheintegralantennaontheCC3220MODAxmodule

5. CircuitDesign
5.1.1 Referenceschematic
TheCC3220MODxandCC3220MODAxsharethesamereferenceschematic.Thedifferencebetweenthe
2referencesistheantennaanditsmatchingcircuitry.TheCC3220MODAx willnothavepin31
assessabletothedesignerastheCC3220MODAxcon tains anintegralantenna.
TheCC3220MODxmainengineareareferenceschematicisshowinFigure
5‐1below.Thefull
LAUNCHCC3220MODxreferenceschematiccanbefoundat:http://www.ti.com/lit/zip/swrc340.
