Compile, Download, and Debug

www.ti.com

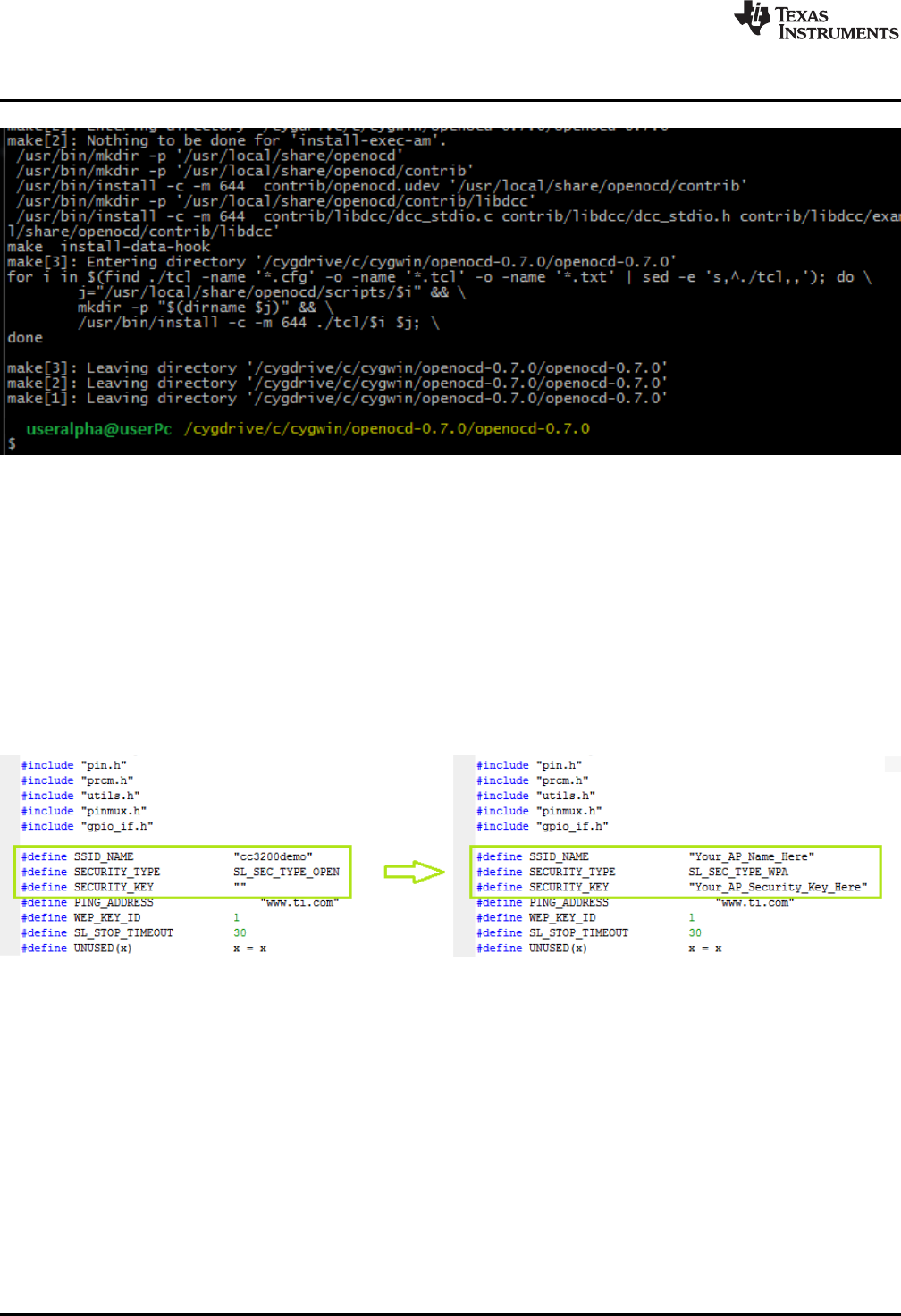

Figure 28. Running the Make Install Command

10. After the command has run successfully, check that the file openocd.exe is generated at path

C:\cygwin\usr\local\bin. Add this path to the Windows PATH environment variable.

3.3.4 Compile the GCC SDK project

1. Open the main.c file of the wlan_station project for editing at C:\TI\CC3200SDK\cc3200-

sdk\example\getting_started_with_wlan_station\main.c.

2. Edit main.c to use the SSID, security type and security key of the Access Point being used. Edit the

macros SSID_NAME, SECURITY_TYPE and SECURITY_KEY to contain the Access Point’s

information as shown in Figure 29. The security types supported for this demo are WPA/WPA2 and

Open. For Open security, define SECURITY_TYPE as SL_SEC_TYPE_OPEN. For WPA and WPA2

security, define it as SL_SEC_TYPE_WPA.

Figure 29. Editing main.c

3. Save main.c.

In the Cygwin terminal, change the directory to C:\TI\CC3200SDK\cc3200-sdk\

example\getting_started_with_wlan_station\gcc\ and run following command:

make –f Makefile

This command should appear as in Figure 30. Note that Cygwin uses forward slashes to separate

directories.
