Transmitter Operation

9-21

Synchronous Serial Port

If the SDTR is loaded with a new word while the transmit FIFO buffer is full, the

new word will be lost; the FIFO buffer will not accept any more than four words.

Continuous mode can be discontinued (changed to burst mode) only by a seri-

al-port or device reset. Changing the FSM bit during transmit or halt will not

necessarily cause a switch to burst mode.

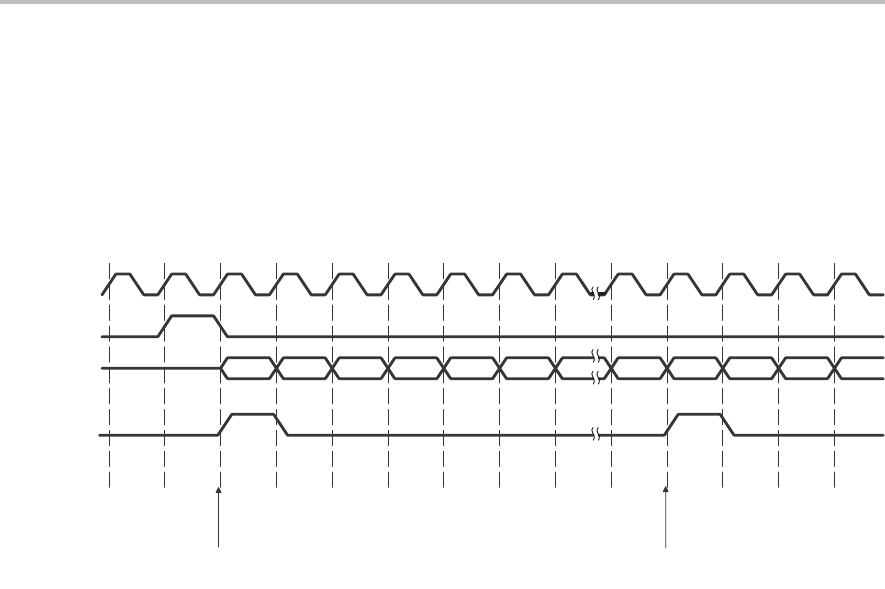

Figure 9–6. Continuous Mode Transmission With Internal Frame Sync

CLKX

XINT

A15 A14 A13 A12 A11

A10 ... A0

LSB

MSB

B15

B14 B13

B12

FSX

XSR loaded

from buffer

XSR loaded

from buffer
