Information

Texas Instruments Sensor Hub Booster-
Pack (BOOSTXL-SENSHUB) is an add-on
board designed to fi t the Tiva™ C Series
TM4C123G LaunchPad along with all of TI’s
MCU LaunchPads. It is a Tiva platform for
evaluating the use of ARM
®
Cortex™-M4F
based TM4C devices in sensor fusion ap-
plications, demonstrating the mathematical
and algorithm computation capabilities of
the M4F. The stackable headers of the Tiva C
Series TM4C123G LaunchPad BoosterPack
XL interface also demonstrate how easy
it is to expand the functionality of a Tiva C
Series LaunchPad when interfacing to other
peripherals via BoosterPacks (BPs). The Sen-
sor Hub BP has an example application that
uses much of the functionality offered in this
platform when used with a Tiva C LaunchPad
and it provides many additional options and
capabilities for end users to explore.
Features
• On-board sensors
•
• InvenSense MPU-9150: 9-axis
MEMS motion tracking
– 3-axis gyro
– 3-axis accelerometer
– 3-axis compass
•
• Bosch Sensortec (BMP180):
Pressure sensor
•
• Sensirion (SHT21): Relative humid-
ity and ambient temperature sensor
•
• Intersil (ISL29023): Ambient and
infrared light sensor
•
• TI (TMP006): Non-contact infrared
temperature sensor
• Uses BoosterPack XL connection
standard
•
• Two pairs of 10-pin headers
providing standard LaunchPad
interface
•
• Primary header (outer row)
compatible with other LaunchPads
•
• Secondary header (inner row)
offers additional Tiva C Series-
based expansion signals
• 2× user input buttons and LEDs
• TI’s wireless evaluation module (EM)
interface connection
• Air Mouse (PC HID) example appli-
ca tion demonstrates sensor fusion
technology
• Tool chains supported: Code
Composer Studio™ IDE, Keil™
RealView
®
, IAR Systems Embedded
Workbench
®
, and Mentor Embedded
Sourcery CodeBench™
• TivaWare™ for C Series DriverLib
under TI BSD-style license
BOOSTXL-SENSHUB Compatibility Table
MCU LaunchPads
Tiva C Series LaunchPad
(EK-TM4C123GXL)
MSP430™ LaunchPad
(MSP-EXP430G2)
C2000™ LaunchPad
(LAUNCHXL-F28027)
Hardware compatiblity
✔
*
✔
Software compatibility
✔
***
*Consult the TI MSP430 forum: www.ti.com/msp430community
**Consult the TI C2000 forum: www.ti.com/c2000community
© 2013 Texas Instruments Incorporated
SPMT282

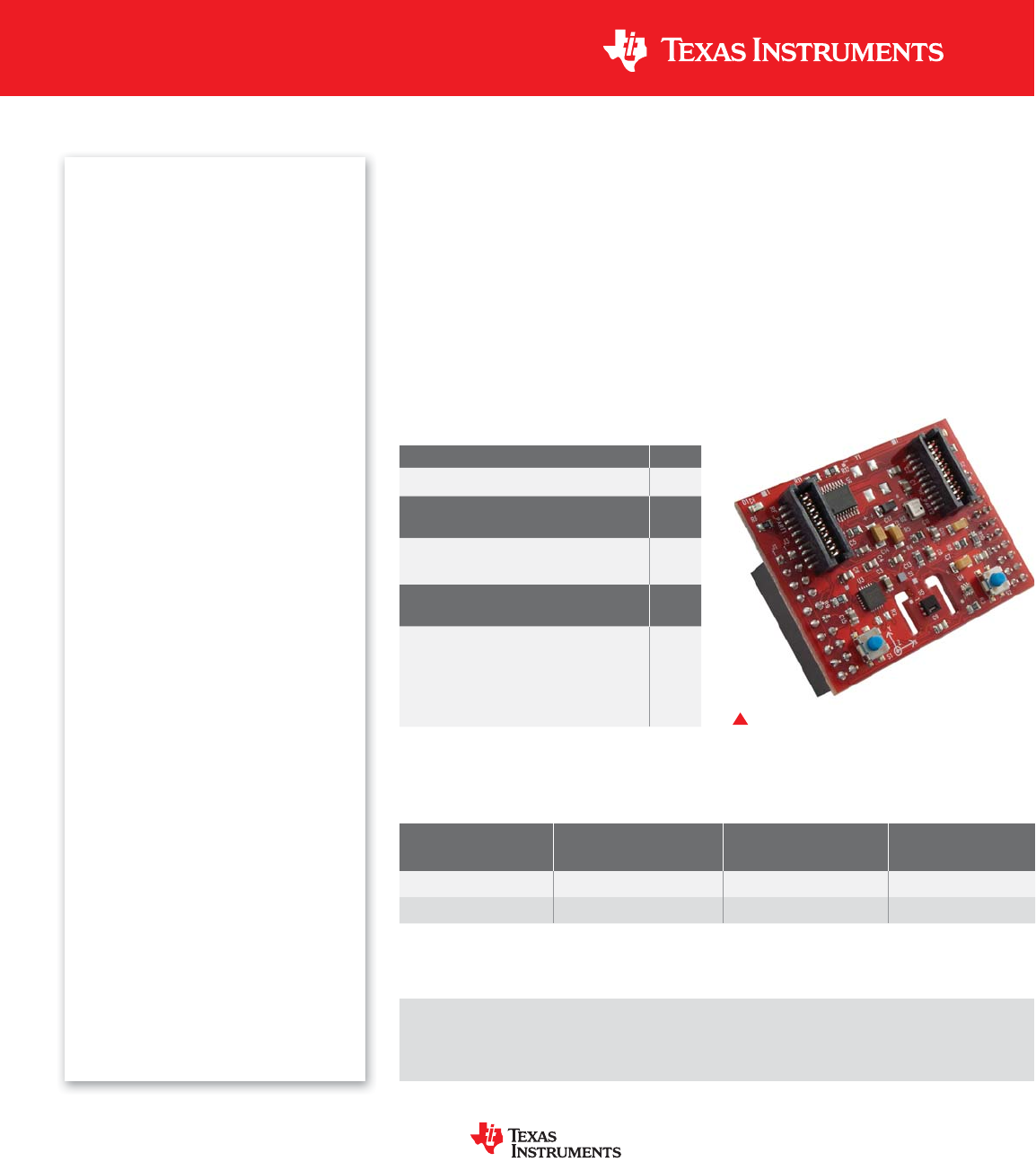

Sensor Hub BoosterPack (BOOSTXL-SENSHUB)
Sensor Hub BoosterPack
BOOSTXL-SENSHUB
For a complete list of available BoosterPacks that can be used with the Tiva C Series
LaunchPad, see: www.ti.com/launchpad
Kit Contents:
Sensor Hub BoosterPack Options MSRP
BoosterPack Only (BOOSTXL-SENSHUB)
†
$49.99
Standard Bundle
(SENSHUBPACK-123G)
†
MSRP
• BoosterPack (BOOSTXL-SENSHUB)
• Tiva C Series LaunchPad (EK-TM4C123GXL)
$59.99
Wireless Bundle
(SENSHUBPACK-123G-W) MSRP
• BoosterPack (BOOSTXL-SENSHUB)
• Tiva C Series LaunchPad (EK-TM4C123GXL)
• Wireless USB Dongle (CC2531EMK)
• Wireless EM (CC2533EMK)
• Battery BoosterPack (BOOSTXL-BATTPACK)
TBD
†
The “Air Mouse” example requires EK-TM4C123GXL for
operation and will be tethered on non-wireless options.
