Datasheet

ADC10040
www.ti.com SNAS224M –JULY 2003–REVISED APRIL 2013

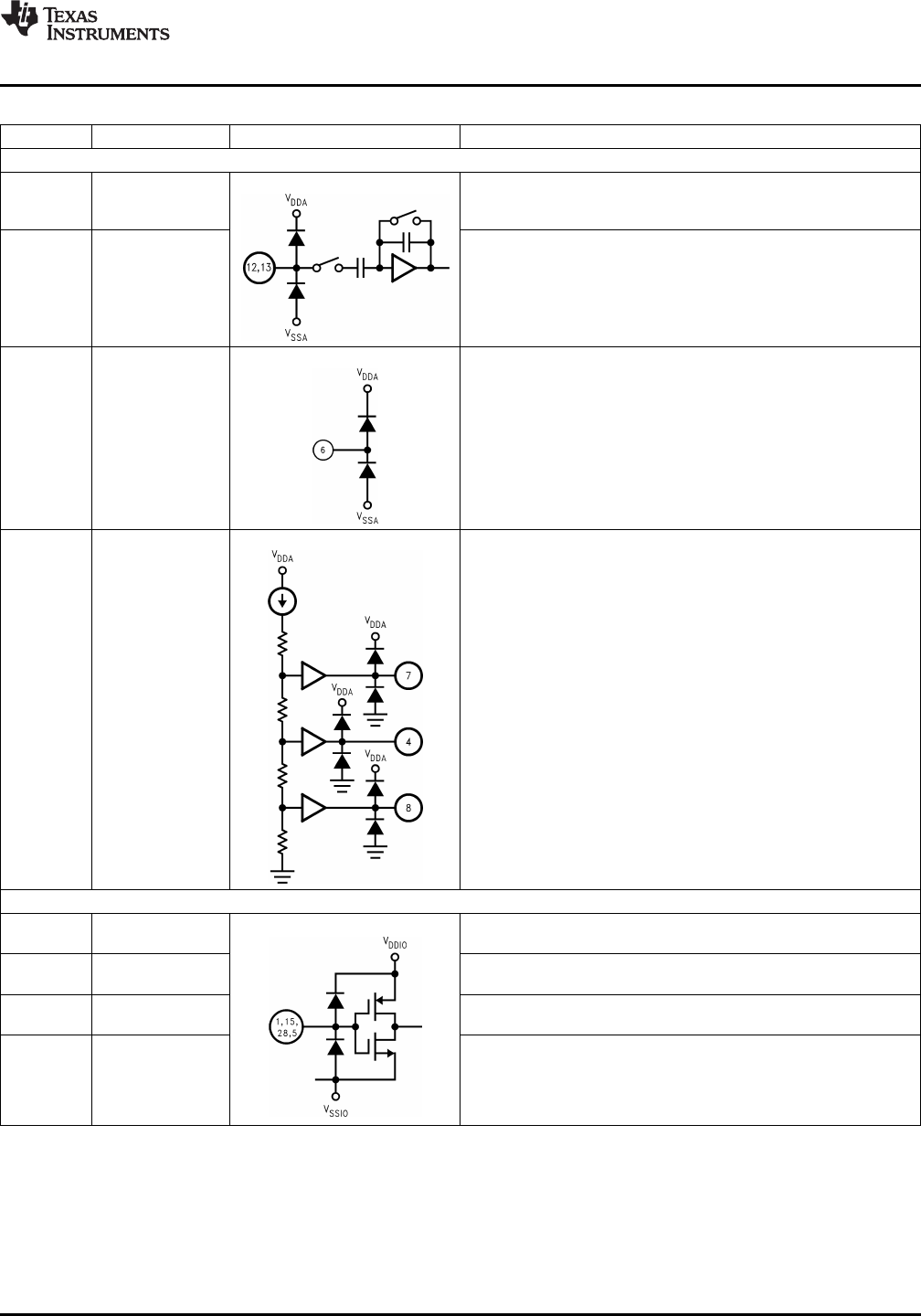

Pin Descriptions and Equivalent Circuits
Pin No. Symbol Equivalent Circuit Description
ANALOG I/O
Inverting analog input signal. With a 1.2V reference the full-scale
12 V
IN
−
input signal level is a differential 1.0 V
P-P
. This pin may be tied to
V
COM
(pin 4) for single-ended operation.
Non-inverting analog input signal. With a 1.2V reference the full-
13 V
IN
+
scale input signal level is a differential 1.0 V
P-P
.
Reference Voltage. This device provides an internal 1.2V reference.
This pin should be bypassed to V
SSA
with a 0.1 µF monolithic
6 V
REF
capacitor. V
REF
is 1.20V nominal. This pin may be driven by a 1.20V
external reference if desired. Do not load this pin.
7 V
REFT
These pins are high impedance reference bypass pins only. Connect
a 0.1 µF capacitor from each of these pins to V
SSA
. These pins
4 V
COM
should not be loaded. V
COM
may be used to set the input common
mode voltage V
CM
.
8 V
REFB
DIGITAL I/O
Digital clock input. The range of frequencies for this input is 20 MHz
1 CLK
to 40 MHz. The input is sampled on the rising edge of this input.
DF = “1” Two’s Complement
15 DF
DF = “0” Offset Binary
This is the standby pin. When high, this pin sets the converter into
28 STBY
standby mode. When this pin is low, the converter is in active mode.
IRS = “V
DDA
” 2.0 V
P-P
input range
IRS = “V
SSA
” 1.5 V
P-P
input range
IRS (Input Range
5 IRS = “Floating” 1.0 V
P-P
input range
Select)
If using both V
IN
+ and V
IN
- pins, (or differential mode), then the
peak-to-peak voltage refers to the differential voltage (V
IN
+ - V
IN
-).
