Typical Performance Characteristics (continued)
Unless otherwise specified, the following specifications apply: V
SSA
= V
SSIO
= 0V, V
DDA
= +3.0V, V
DDIO
= +2.5V, V
IN
= 2 V
P-P
,
STBY = 0V, External V
REF
= 1.2V, f
CLK
= 40 MHz, f
IN
= 19 MHz, 50% Duty Cycle.

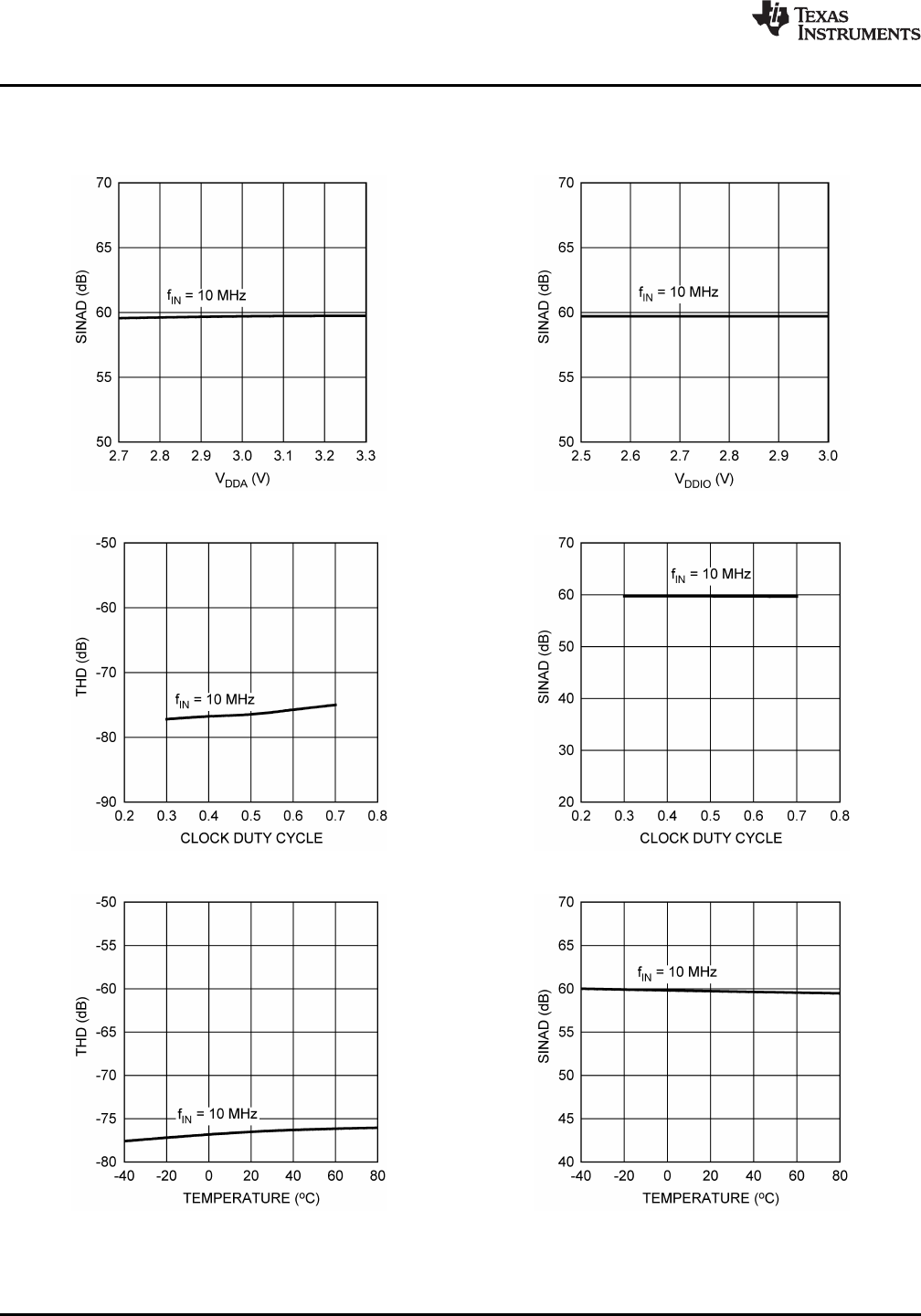

Figure 22. SINAD vs. V
DDA
Figure 23. SINAD vs. V
DDIO
Figure 24. THD vs. Clock Duty Cycle Figure 25. SINAD vs. Clock Duty Cycle
Figure 26. THD vs. Temperature Figure 27. SINAD vs. Temperature
