Typical Performance Characteristics (continued)
Unless otherwise specified, the following specifications apply: V
SSA
= V
SSIO
= 0V, V
DDA
= +3.0V, V
DDIO
= +2.5V, V
IN
= 2 V
P-P
,
STBY = 0V, External V
REF
= 1.2V, f
CLK
= 40 MHz, f
IN
= 19 MHz, 50% Duty Cycle.

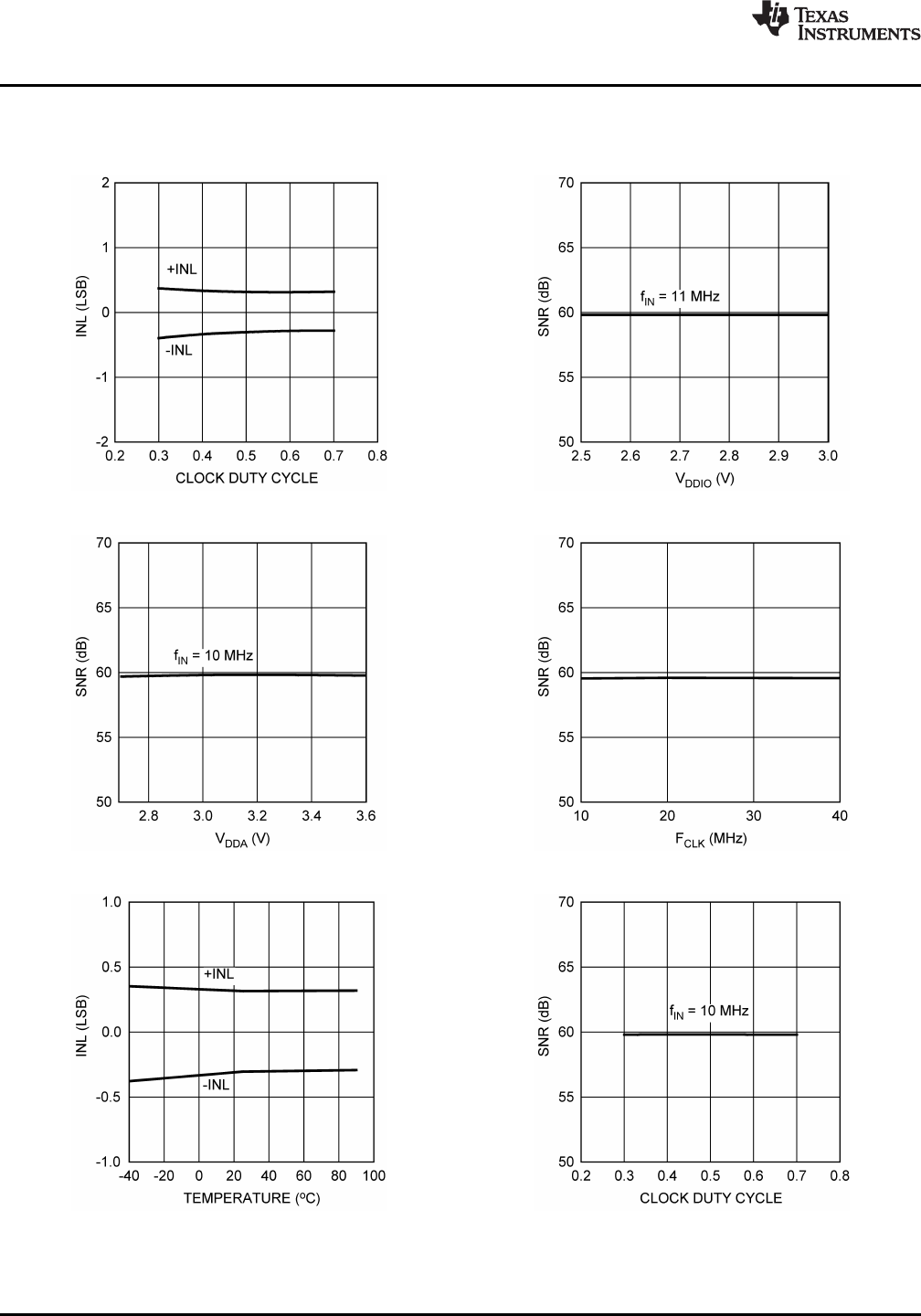

Figure 10. INL vs. Clock Duty Cycle Figure 11. SNR vs. V
DDIO
Figure 12. SNR vs. V
DDA
Figure 13. SNR vs. f
CLK
Figure 14. INL vs. Temperature Figure 15. SNR vs. Clock Duty Cycle
