Typical Performance Characteristics
Unless otherwise specified, the following specifications apply: V
SSA
= V
SSIO
= 0V, V
DDA
= +3.0V, V
DDIO
= +2.5V, V
IN
= 2 V
P-P
,
STBY = 0V, External V
REF
= 1.2V, f
CLK
= 40 MHz, f
IN
= 19 MHz, 50% Duty Cycle.

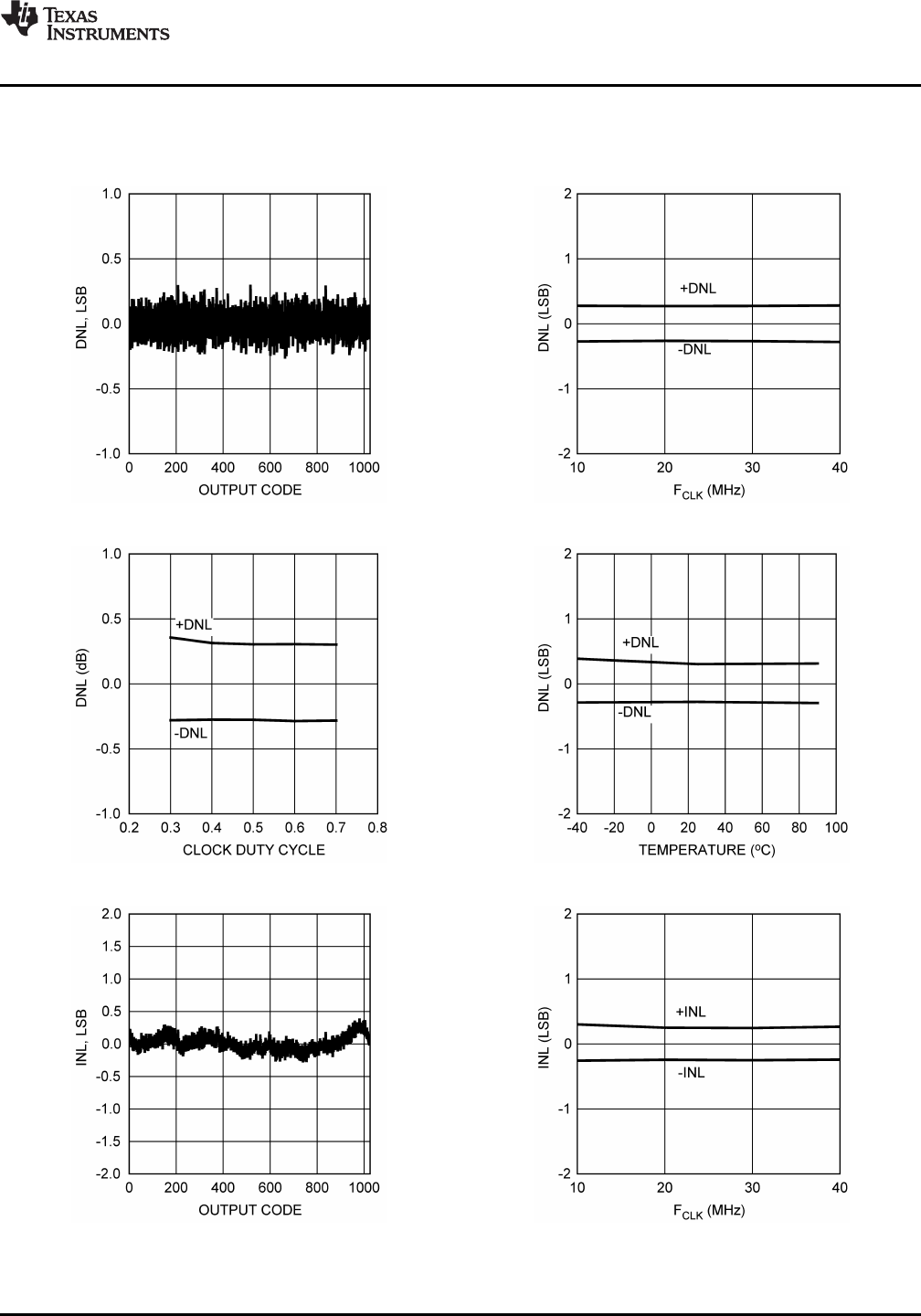

Figure 4. DNL Figure 5. DNL vs. f
CLK
Figure 6. DNL vs. Clock Duty Cycle (DC input) Figure 7. DNL vs. Temperature
Figure 8. INL Figure 9. INL vs. f
CLK
