6.4 Restricted Area

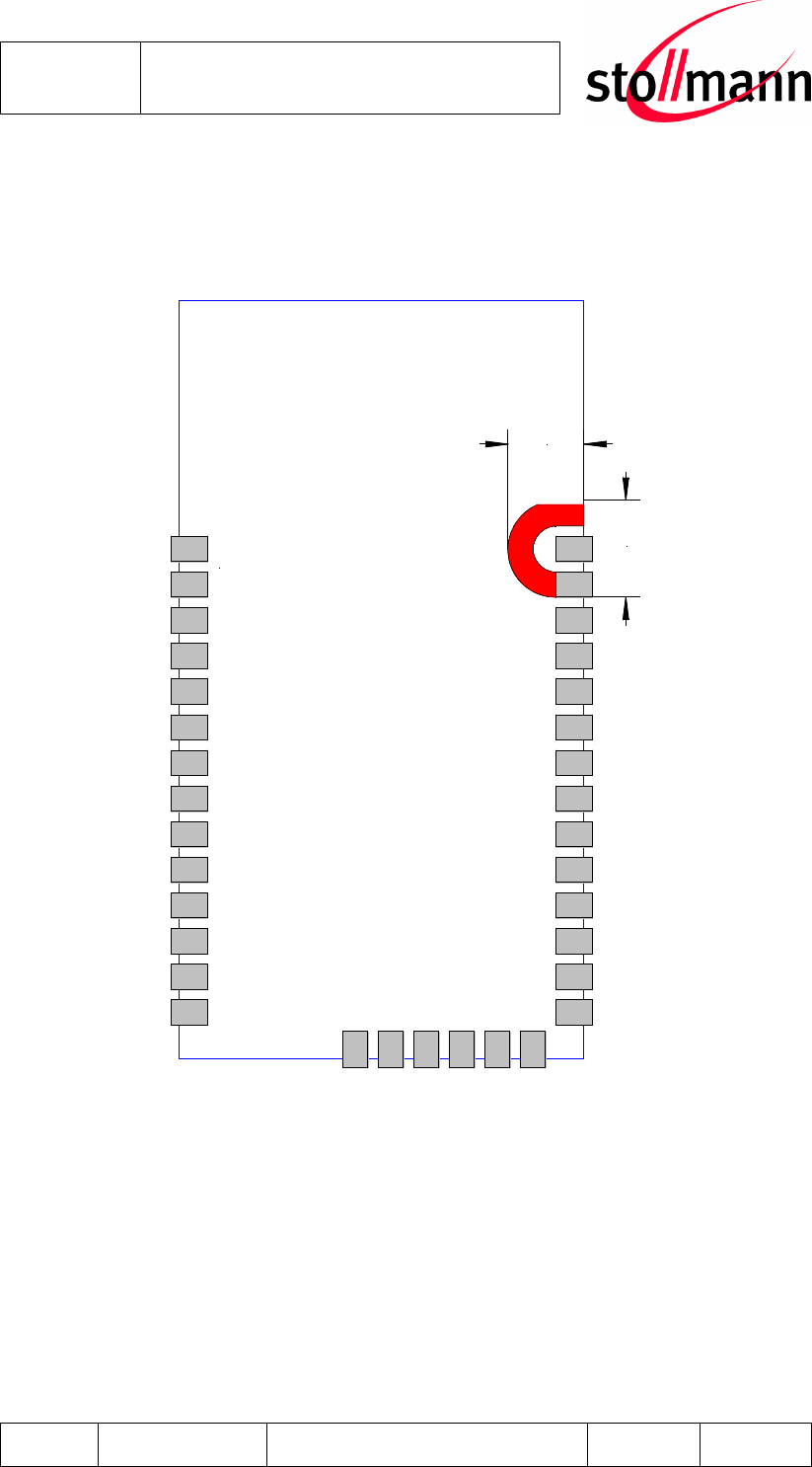

The mother board should have no bare conductors or vias in this restricted area,
because it is not covered by stop mask print.
BlueMod+B20
top view
2,7
3,5
6.5 Housing Guidelines
The individual case must be checked to decide whether a specific housing is suit-
able for the use of the internal antenna. A plastic housing must at least fulfill the fol-
lowing requirements:
• Non-conductive material, non-RF-blocking plastics
• No metallic coating
• ABS is suggested
