9. MECHANICAL DESIGN
General
The LM940 module was designed to be compliant with a standard lead-free SMT process.
Moreover, it is compatible with the Mini PCIe card 52-pin card edge-type connector.
Finishing & Dimensions
The LM940 module’s overall dimensions are:
 Length: 50.95 mm
 Width: 30.00 mm
 Thickness: 2.70 mm
The module complies with the standard dimensions specified in the PCI Express Mini
Card Electromechanical Specification Revision 1.1

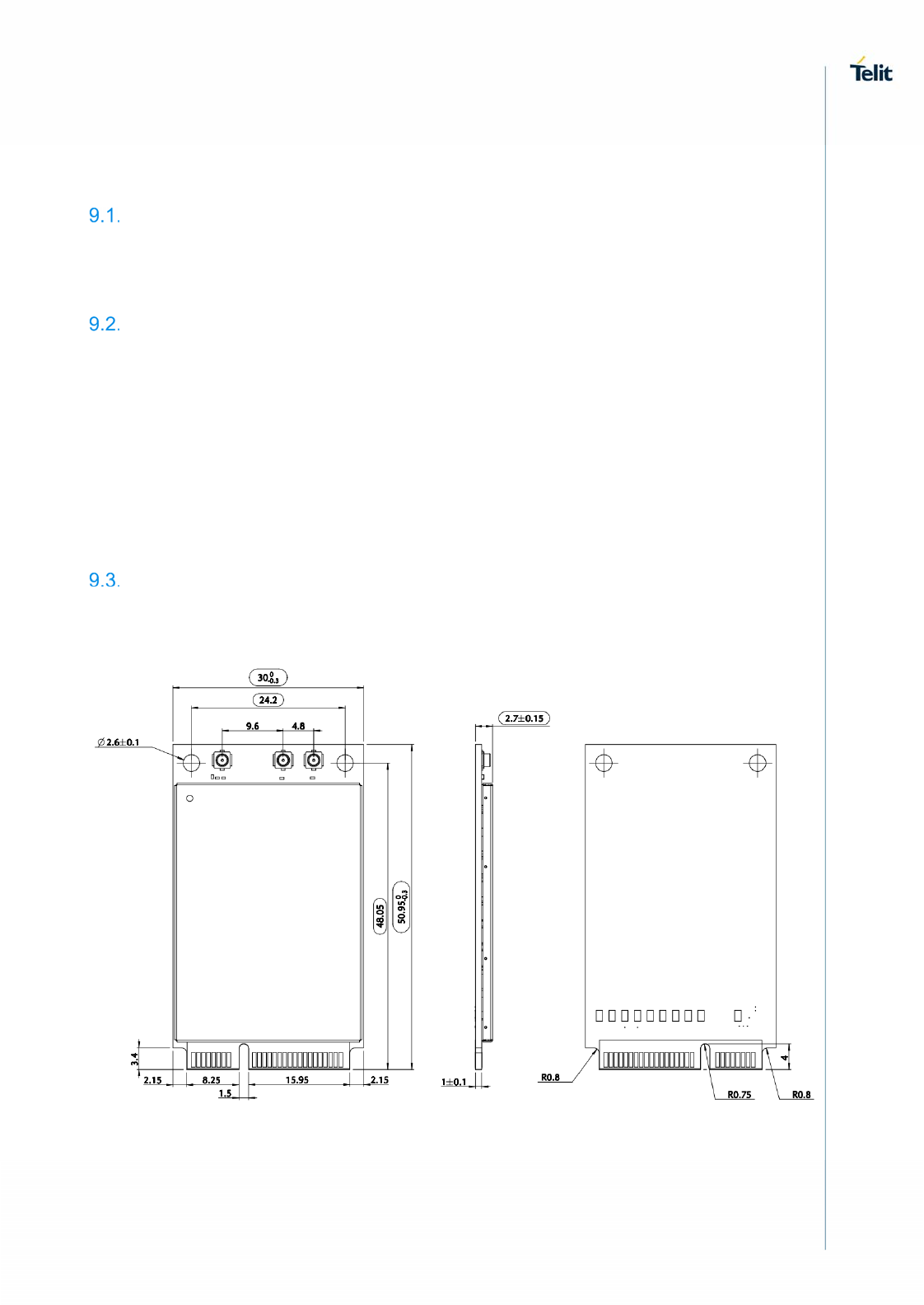

Drawing
This figure shows the mechanical dimensions of the LM940 module.
