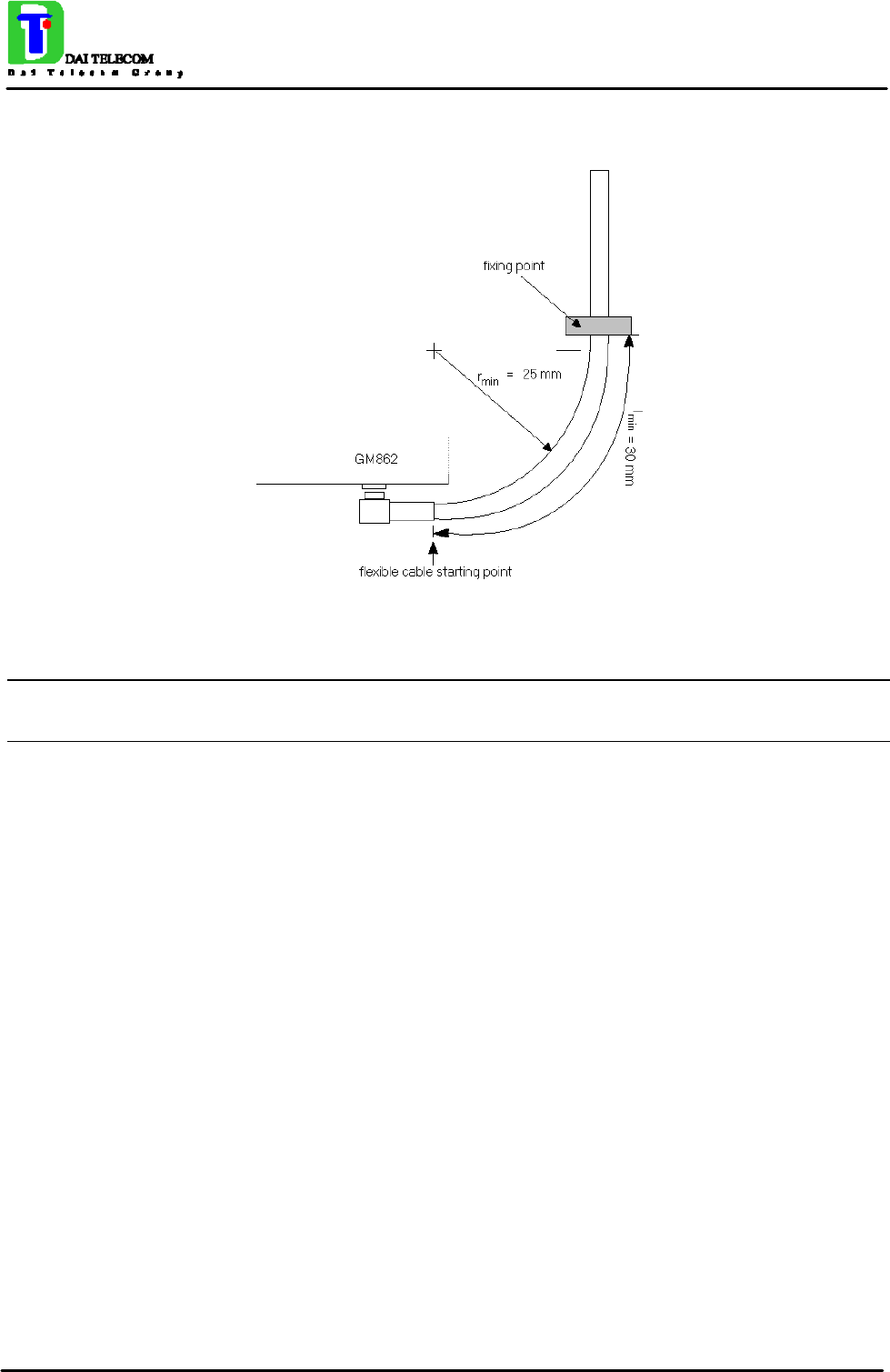

- Angle connector fixing example 2 -
NOTE: in the examples the cable is always bent, this is not a constrain. If the installation does
not require it, then the cable can be kept straight, ensuring that the fixing is without sliding.
1.16.2 Precautions
- The plug should be inserted in the connector only after the installation of the Telit GM862-PCS
module in the board. This is to prevent accidental breaking of the antenna connection during the
transport.
- The coaxial cable must be fixed at least in one point, without sliding possibilities.
- The plug insertion/removal must be done axially with the female connector of the GM862-PCS,
keeping lateral strains to a minimum.
- The insertion/crimping pull out force must be less than 15N.
