13.3. Recommended foot print for the application
In order to easily rework the GE865 is suggested to consider on the
application a 1.5 mm placement inhibit area around the module.
It is also suggested, as common rule for an SMT component, to avoid
having a mechanical part of the application in direct contact with
the module.
NOTE: In the customer application, the region under WIRING INHIBIT
(see figure) must be clear from signal or ground paths.

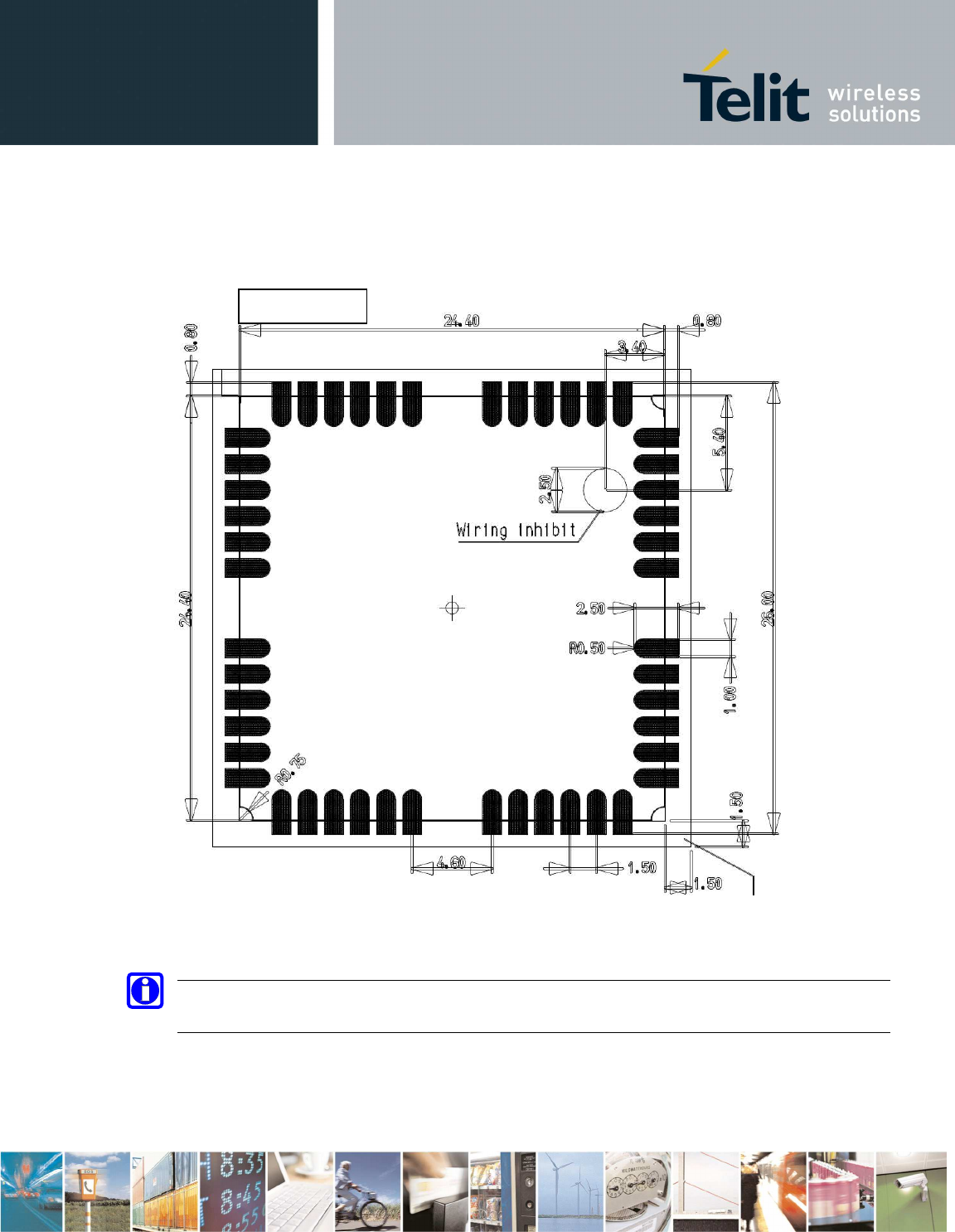

Top View
