WC Gear Panels
Rear Panel Differences
17
Note: The default SDI number assignment on the model 230 are out of order and
differ from the numbering of the model 220.
Connect the inputs to your video sources, such as cameras, DVD players, computers,
editors, graphics cards, and other devices that produce a video output that you want to
use as an input for live production.

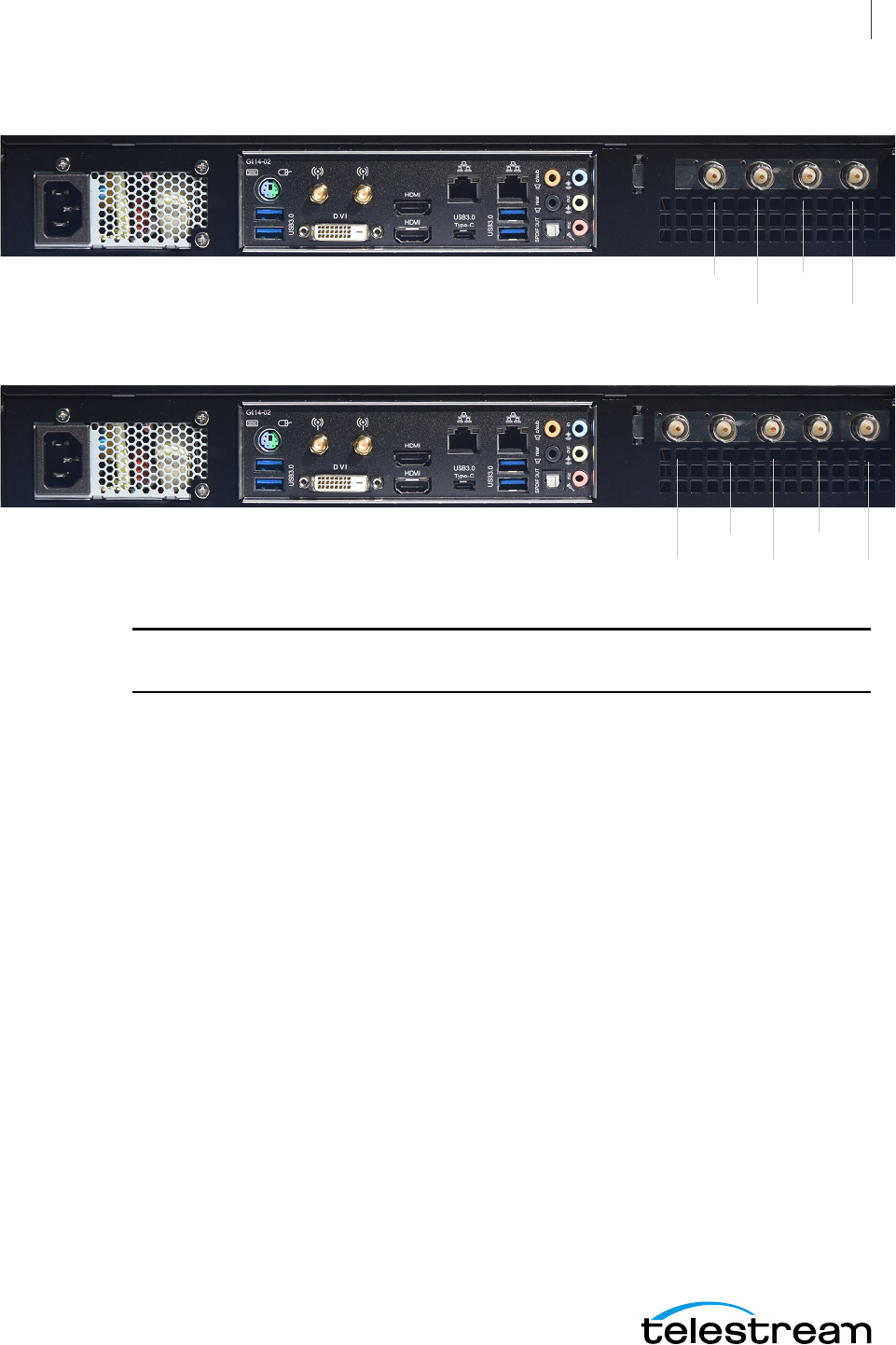

SD/HD/3G-SDI BNC Input Connectors
Model 210/220 Rear Panel with SDI BNC
SDI 4 SDI 2
SDI 3 SDI 1
SD/HD/3G-SDI BNC Input Connectors
Model 230 Rear Panel with SDI BNC and Ref Input
SDI 1 SDI 2
REF SDI 3 SDI 4
