User Manual

WC Gear Panels
Rear Panel
15

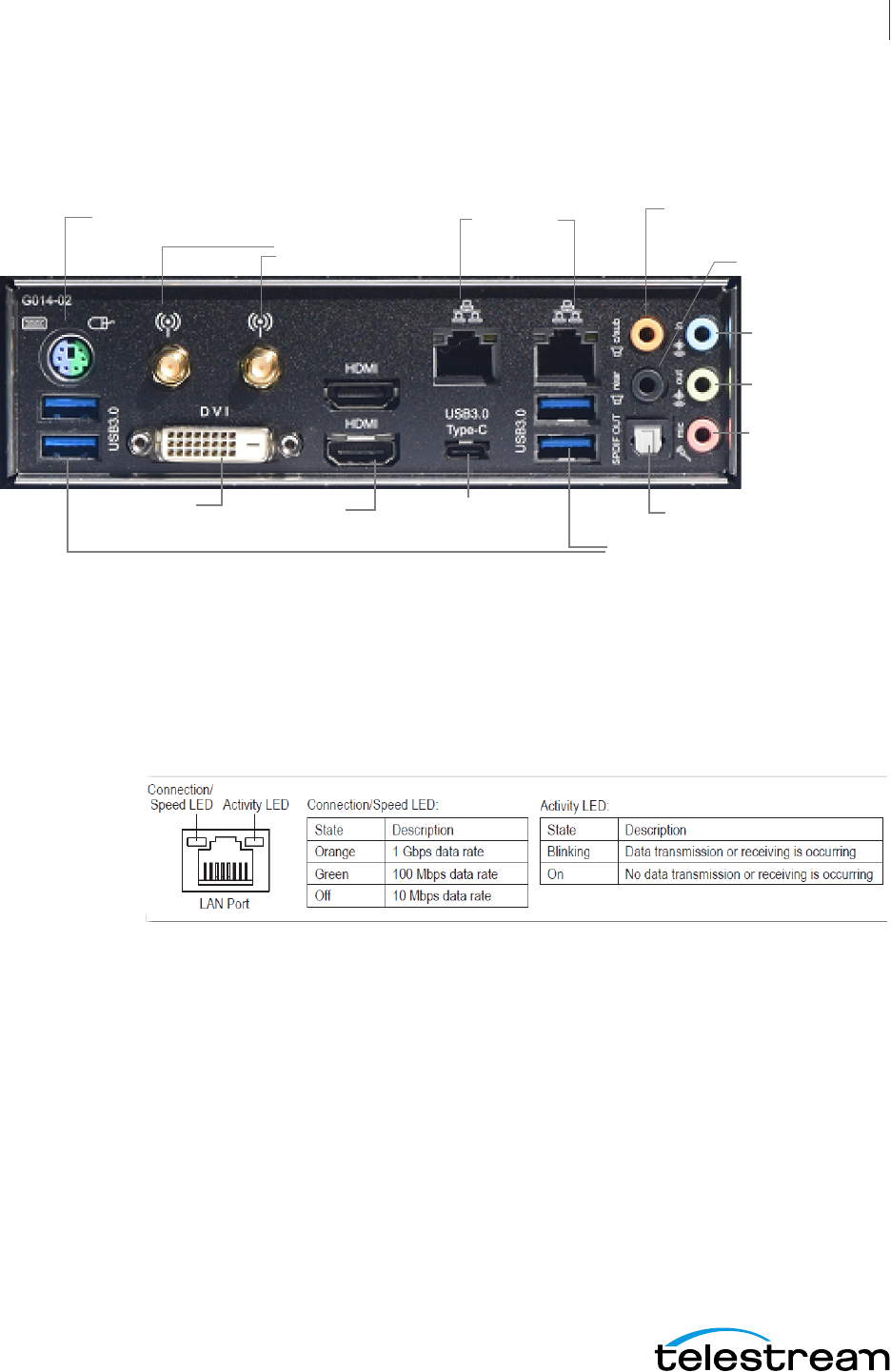

Rear Panel
The Rear Panel connectors have the following functionality.
1. PS/2 Keyboard/Mouse Port Use this port to connect a PS/2 mouse or keyboard.
2. SMA Antenna Connectors (2T2R) Use this connector to connect an antenna.
Tighten the antenna cables to the antenna connectors and then move the antenna
to a place where the signal is good.
3. RJ-45 LAN Port The Gigabit Ethernet LAN port provides Internet connection at up
to 1 Gbps data rate. The following describes the states of the LAN port LEDs.
4. Center/Subwoofer Speaker Out (Orange) Use this audio jack to connect center/
subwoofer speakers in a 5.1/7.1-channel audio configuration.
5. Rear Speaker Out (Black) This jack can be used to connect speakers in a 4/5.1/7.1-
channel audio configuration.
6. Line In (Blue) Line in jack. Use this for external audio devices other than
microphones.
7. Line Out (Green) Line out jack. This jack supports audio amplifying function. For
better sound quality, it is recommended that you connect your headphone/
speaker to this jack (actual effects may vary by the device being used). Use this
audio jack for a headphone or 2-channel speaker. This jack can be used to connect
front speakers in a 4/5.1/7.1-channel audio configuration.
8. Mic In (Pink) The Mic in jack. Microphones must be connected to this jack.
11. USB Type-C™
Port
12. HDMI
Output Ports
6. Line In
4. Center/Subwoofer
Speaker Out
1. PS/2 Keyboard/
Mouse Port
3. RJ-45
LAN Ports
9. Optical S/PDIF Out
5. Rear
Speaker Out
7. Line Out
8. Mic In
2. SMA Antenna
Connectors
10. USB 3.0/2.0 Ports
13. DVI-
D Port
