WC Gear Panels

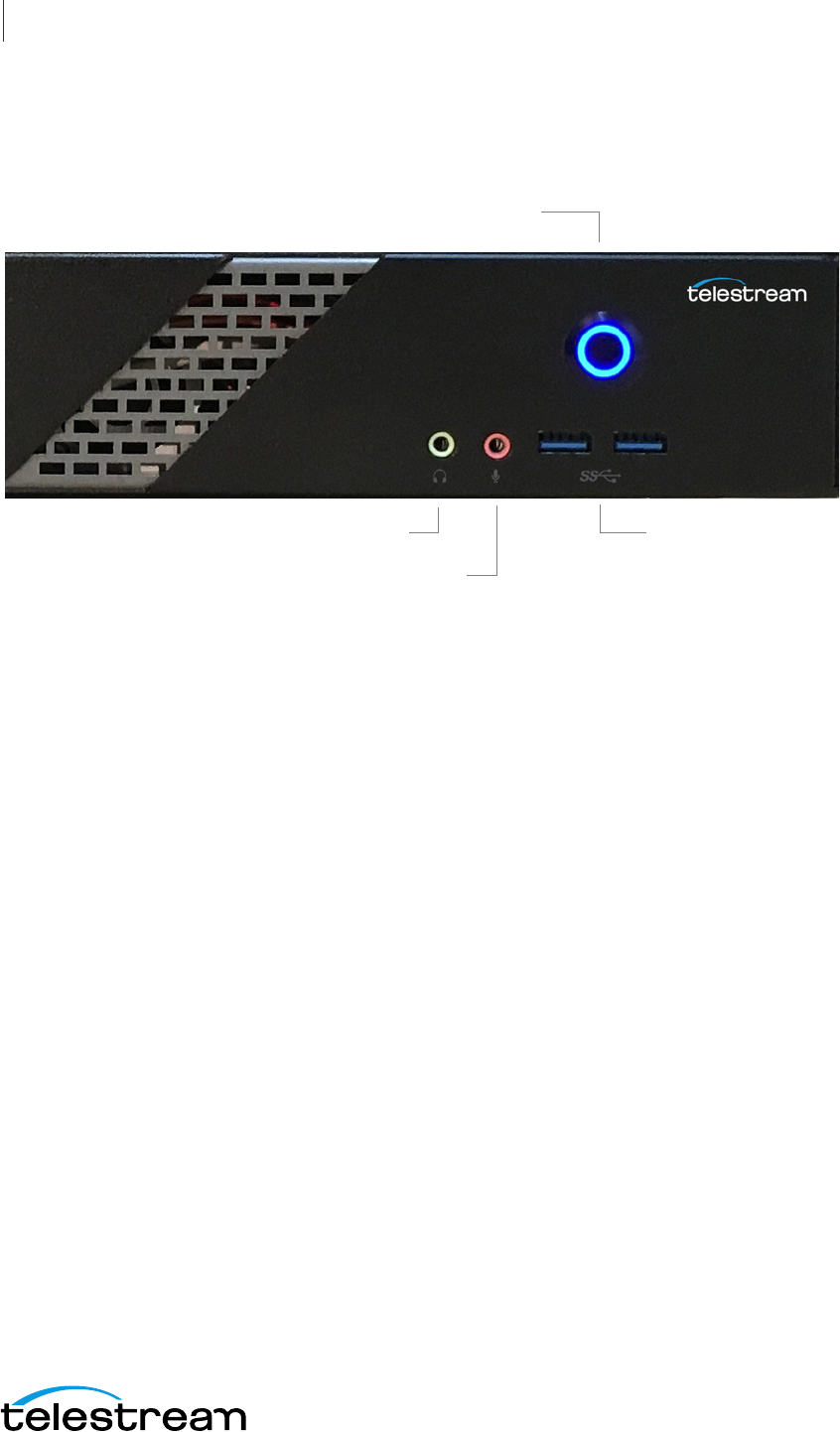

Front Panel

Wirecast Gear has the following connectors on the front panel.

1. Power Button This button turns the power on and off. When on, a blue light is

displayed.

2. Line Out (Green) Use this output for headphones or a speaker system. You can also

connect front speakers in a 4/5.1/7.1-channel audio configuration.

3. Mic In (Pink) Use this input for Microphones. Many live producers choose to use a

USB-based external audio configuration with either a simple A/D device with

professional connectors or a full audio mixer panel for tactile control of audio

levels. External devices must be USB 2.1 compatible. Contact the reseller who sold

you your Wirecast Gear unit for specific brand and model information.

4. USB 3.0 Port The USB 3.0 port supports the USB 3.0 specification and is compatible

to the USB 2.0/1.1 specification. Use this port for USB devices.

4. USB 3.0

2. Line Out (green)

3. Mic In (Pink)

1. Power Button
