l The Range/Helpstring column shows an acceptable range of 0.002 to 1 step 0.0005. meaning it
can be set anywhere from 0.002 to 1 in increments as small as .0005. If Variable Gain is left on, the
next value possible is 0.0025.

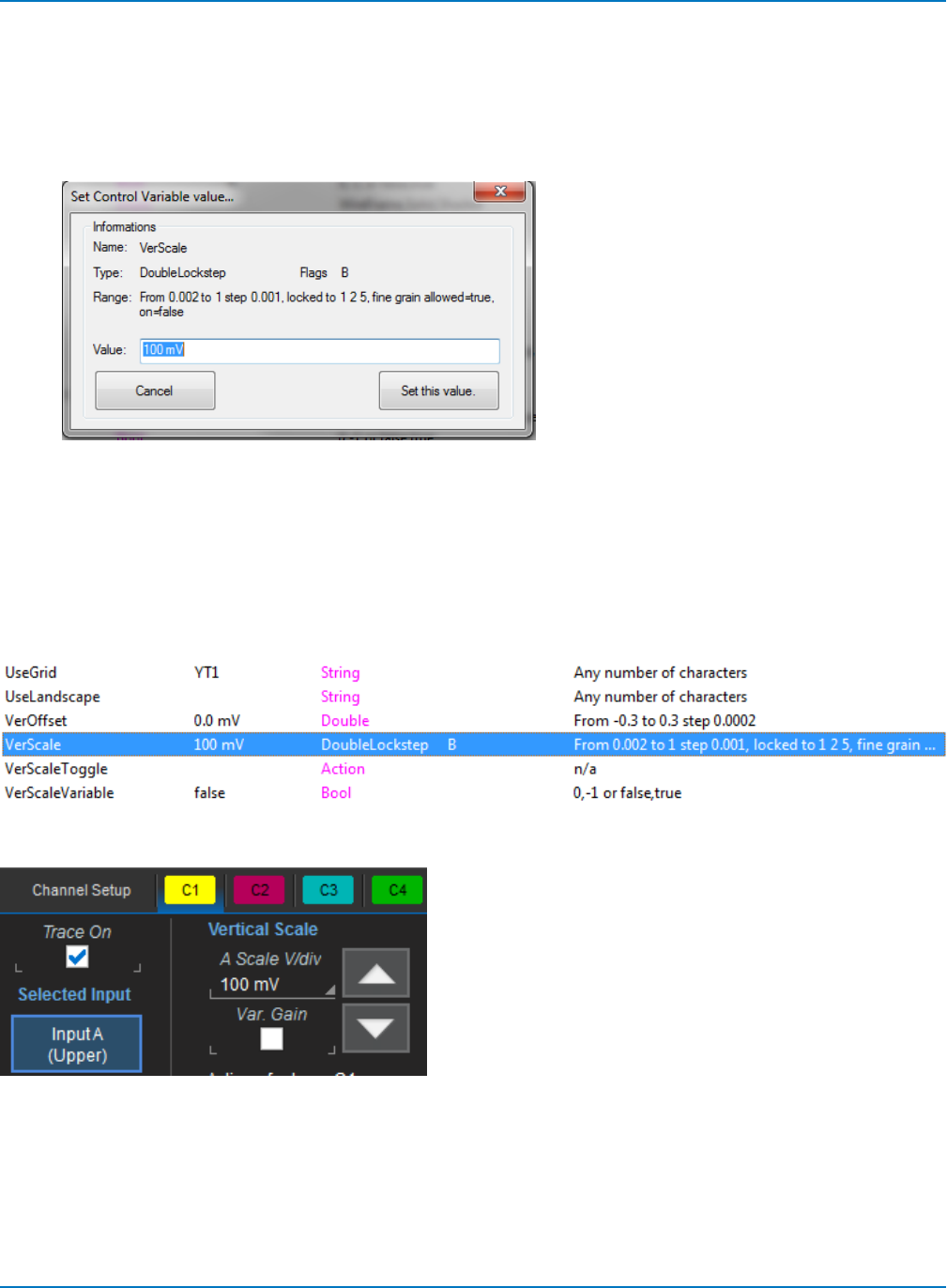

l The additional statement that it is "locked to 1 2 5, fine grain..." is fully visible if we right-click on the
VerScale line and choose Copy to display the Set Control Variable dialog:
While fine grain (Variable Gain) adjustments are allowed on this oscilloscope (true), the Var. Gain
setting is currently off (on=false), so the control would adjust in stepped increments of 1, 2, or 5
units (in sequence) were it being operated from the oscilloscope touch screen. Starting at 0.002,
the next value would be 0.005.
Enter a new Value of 100 mV and choose to Set this value.
Back on the XStreamBrowser window, you will see that the C1 VerScale setting has changed:
And the oscilloscope immediately reflects this change, as well:
Note that here we can see the Var. Gain setting is deselected.
That's all that is required to remotely set up a MAUI oscilloscope from your PC.
